HPK Hole Plug

Product Name：Hole Plug

Product Code：HPK

General
Variants

HPK Hole Plug
Material	Nylon 66, UL94-V2
Color	Black (RAL 9005)
Temperature range	-40℃~100℃
Application	It can be used as the plugging of reserved or redundant holes. Without tools, the assembly can be completed with one touch of hand. Applicable to steel plate less than 3.2mm

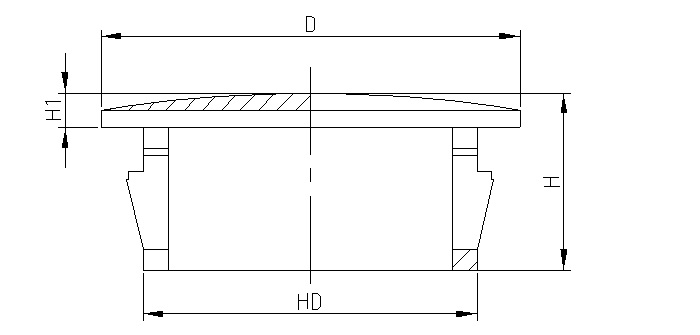

Model	Steel plate aperture HD (mm)	Bulkhead outer diameter D (mm)	Bulkhead thickness H1 (mm)	Total height	Package Unit (pcs/pack)
HPK-8	7.8	11.9	1.6	8	100
HPK-10	9.5	13	1.6	10.5	100
HPK-13	12.7	16.9	1.6	10.5	100
HPK-16	15.9	19.8	1.6	10.5	100
HPK-19	19	22.9	1.6	10.5	100
HPK-22	22.2	24.9	1.6	11.5	100
HPK-25	25.5	28.3	1.6	11.5	100
HPK-30	30	34.2	1.6	11.5	100
HPK-38	38.1	42.4	1.6	11.2	100
HPK-45	44.5	49.1	1.6	11.1	100
HPK-50	50.1	54.6	1.6	11.8	100
