TRK Nylon Thread Reducer

Product Name：Nylon Thread Reducer

Product Code：TRK

General
Variants

TRK Nylon Thread Reducer
Material	Nylon
Color	Greyish white (RAL 7035), black (RAL 9005)
Temperature range	-40℃~100℃
Waterproof grade	IP68 when using O-ring

TRK-M Metric Thread

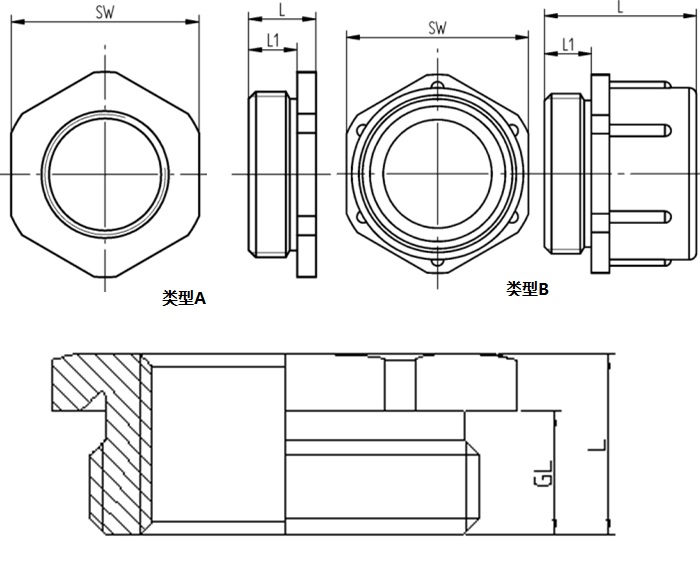

Grey	Black	External thread	Internal thread	Thread length L1(mm)	Total length L(mm)	Wrench size SW(mm)	Form	Packing unit (pcs/pack)
TRK-M16/M12G	TRK-M16/M12B	M16×1.5	M12×1.5	8	12	18	A	100
TRK-M20/M16G	TRK-M20/M16B	M20×1.5	M16×1.5	9	13	24	A	100
TRK-M25/M16G	TRK-M25/M16B	M25×1.5	M16×1.5	11	16	30	A	100
TRK-M25/M18G	TRK-M25/M18B	M25×1.5	M18×1.5	11	16	30	A	100
TRK-M25/M20G	TRK-M25/M20B	M25×1.5	M20×1.5	11	16	30	A	100
TRK-M32/M20G	TRK-M32/M20B	M32×1.5	M20×1.5	11	16	36	A	50
TRK-M32/M24G	TRK-M32/M24B	M32×1.5	M24×1.5	11	16	36	A	50
TRK-M32/M25G	TRK-M32/M25B	M32×1.5	M25×1.5	11	16	36	A	50
TRK-M32/M27G	TRK-M32/M27B	M32×1.5	M27×2.0	11	16	36	A	50
TRK-M40/M25G	TRK-M40/M25B	M40×1.5	M25×1.5	13	19	45	A	25
TRK-M40/M30G	TRK-M40/M30B	M40×1.5	M30×2.0	13	19	45	A	25
TRK-M40/M32G	TRK-M40/M32B	M40×1.5	M32×1.5	13	19	45	A	25
TRK-M50/M32G	TRK-M50/M32B	M50×1.5	M32×1.5	14	22	55	A	20
TRK-M50/M40G	TRK-M50/M40B	M50×1.5	M40×1.5	14	22	55	A	10
TRK-M63/M40G	TRK-M63/M40B	M63×1.5	M40×1.5	15	24	68	A	10
TRK-M63/M50G	TRK-M63/M50B	M63×1.5	M50×1.5	15	24	68	A	10

TRK-P PG Thread

Grey	Black	External thread	Internal thread	Thread length L1(mm)	Total length L(mm)	Wrench size SW(mm)	Form	Packing unit (pcs/pack)
TRK-P09/P07G	TRK-P09/P07B	PG9	PG7	8	20.5	19	B	100
TRK-P11/P09G	TRK-P11/P09B	PG11	PG9	8	22.5	22	B	100
TRK-P13/P11G	TRK-P13/P11B	PG13.5	PG11	9	24	24	B	100
TRK-P16/P11G	TRK-P16/P11B	PG16	PG11	10	16	27	A	100
TRK-P16/P13G	TRK-P16/P13B	PG16	PG13	10	16	27	A	100
TRK-P21/P16G	TRK-P21/P16B	PG21	PG16	11	16	33	A	100
TRK-P29/P21G	TRK-P29/P21B	PG29	PG21	12	18	42	A	50
TRK-P36/P29G	TRK-P36/P29B	PG36	PG29	13	24	52	A	50
TRK-P48/P42G	TRK-P48/P42B	PG48	PG42	14	24	65	A	25
