JQGR Conduit Reducing Connector

Product Name：Conduit Reducing Connector

Product Code：JQGR

General
Variants

JQGR Conduit Reducing Connector
Material	Nylon
Color	Dark grey (RAL 7037), black (RAL 9005)
Temperature	-40℃ ~ 115℃, 150℃ in a short time
Product Description	The ad2 outer end of jqgr is used together with jqk-pa two-way/jqt-pa and jqy three-way, which can be suitable for more sizes of conduits. It has good self extinguishing performance and does not contain halogen, phosphorus and cadmium. It has passed ROHS certification

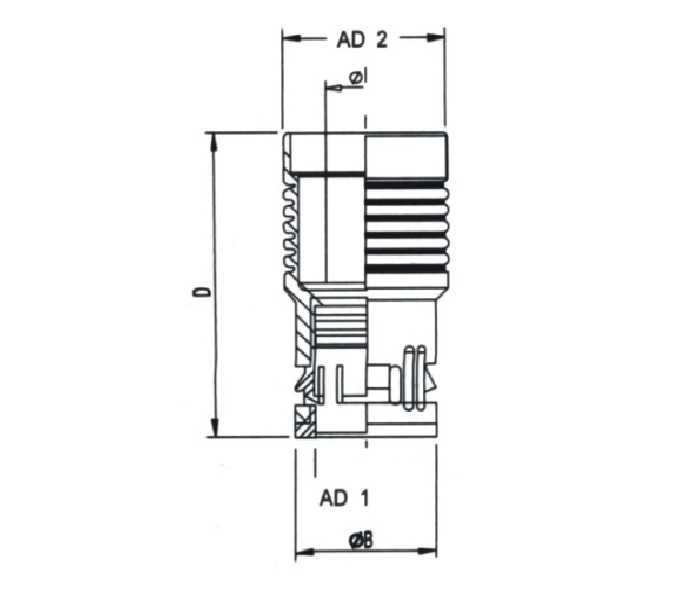

Grey	Black	Conduit1AD1	conduit2 ad2	ΦB (mm)	Φl(mm)	Total length d(mm)	Packing unit (pcs/pack)
JQGR-21.2/13.0G	JQGR-21.2/13.0B	AD13.0	AD21.2	20	10	58	10
JQGR-28.5/13.0G	JQGR-28.5/13.0B	AD13.0	AD28.5	20	10	61	10
*JQGR-34.5/15.8G	JQGR-34.5/15.8B	AD15.8	AD34.5	23	12.5	60	10
*JQGR-28.5/15.8G	JQGR-28.5/15.8B	AD15.8	AD28.5	23	12.5	63	10
*JQGR-21.2/15.8G	JQGR-21.2/15.8B	AD15.8	AD21.2	23	12.5	60.5	10
*JQGR-34.5/21.2G	JQGR-34.5/21.2B	AD21.2	AD34.5	29.5	17	64	10
JQGR-28.5/21.2G	JQGR-28.5/21.2B	AD21.2	AD28.5	29.5	17	64.5	10
*JQGR-34.5/28.5G	JQGR-34.5/28.5B	AD28.5	AD34.5	37	23.5	70	10
*JQGR-42.5/34.5G	JQGR-42.5/34.5B	AD34.5	AD42.5	44	30	75	10
*JQGR-54.5/42.5G	JQGR-54.5/42.5B	AD42.5	AD54.5	52	39	84	5
*JQGR-54.5/21.2G	JQGR-54.5/21.2B	AD21.2	AD54.5	29.5	17	86	5

* no mold, customized development required
