JQS Light Without Cover Fixing Seat

Product Name：Light Without Cover Fixing Seat

Product Code：JQS

General
Variants

JQS Light Fixed Seat Without Cover
Material	Nylon
Color	Dark grey (RAL 7037), black (RAL 9005)
Temperature	-40℃~115℃
Product Description	It has good self extinguishing property and does not contain halogen, phosphorus and cadmium. It has passed ROHS test and is suitable for conduit fixation

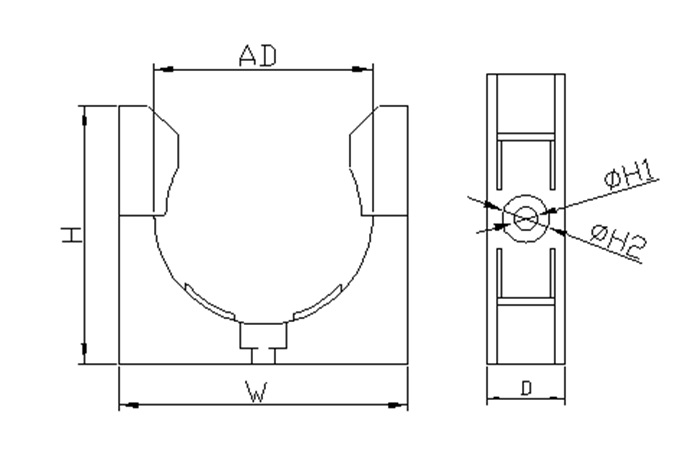

Grey	Black	Conduit size	WidthW (mm)	Height h(mm)	Thickness d(mm)	H1 (mm)	H2 (mm)	Installbolts	Packing unit (pcs/pack)
JQS AD10.0G	JQS AD10.0B	AD10.0	25	23	12.5	3.5	6	M4	50
JQS AD13.0G	JQS AD13.0B	AD13.0	29	27	11	4	7	M5	50
JQS AD15.8G	JQS AD15.8B	AD15.8	30	27	12	4	8	M5	50
JQS AD18.5G	JQS AD18.5B	AD18.5	32	29	14	5	9	M5	50
JQS AD21.2G	JQS AD21.2B	AD21.2	35	34	15	5.5	9.5	M6	50
JQS AD25.5G	JQS AD25.5B	AD25.5	38	38	14	6.5	10	M6	50
JQS AD28.5G	JQS AD28.5B	AD28.5	42	42	16	6.5	11.5	M6	50
JQS AD31.5G	JQS AD31.5B	AD31.5	50	40	16	6.5	11.5	M6	25
JQS AD34.5G	JQS AD34.5B	AD34.5	51	48	16	6.5	11.5	M6	25
JQS AD42.5G	JQS AD42.5B	AD42.5	61	56	19	6.5	11.5	M6	25
JQS AD54.5G	JQS AD54.5B	AD54.5	73	69	19	6.5	11.5	M6	25
