Six Hole Fixing Seat
ui-button
ui-button
Product Name：Six Hole Fixing Seat
Product Code：JQSH
Inquiry
General
Variants
JQSH Six Hole Fixed Seat
Material
Nylon 66
Color
Dark grey (RAL 7037), black (RAL 9005)
Temperature
-40℃~115℃
Product Description
Good self extinguishing performance, no halogen, phosphorus, cadmium, ROHS test, suitable for conduit fixing
Grey
Black

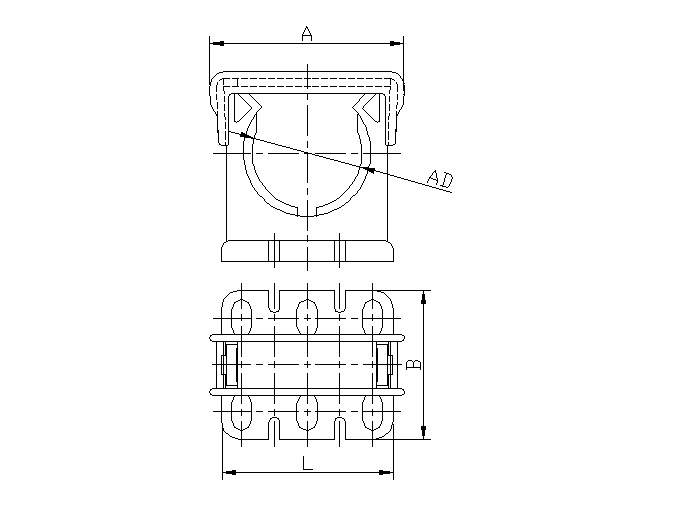

Conduit size
A
(mm)
B
(mm)
L(mm)
Installscrews
Packing unit
(pcs/pack)
JQSH AD21.2G
JQSH AD21.2B
AD21.2
36
36
35
6×M5
50
JQSH AD28.5G
JQSH AD28.5B
AD28.5
44
36
35
6×M5
50
JQSH AD34.5G
JQSH AD34.5B
AD34.5
52
40
46
6×M5
25
JQSH AD42.5G
JQSH AD42.5B
AD42.5
58
60
53
6×M5
10
JQSH AD54.5G
JQSH AD54.5B
AD54.5
72
60
66
6×M5
10
