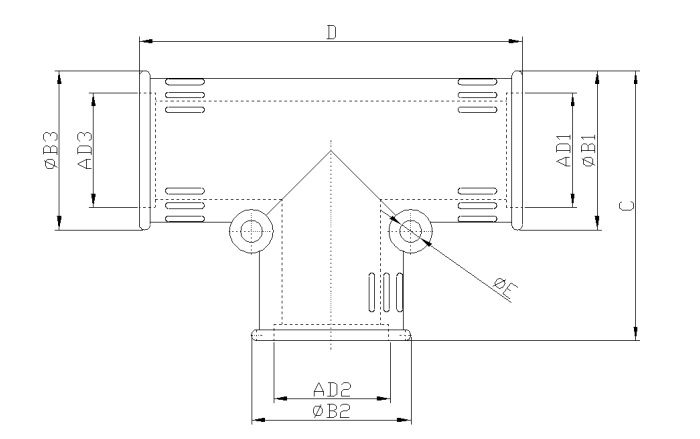

| Model |
Conduit2ad2 |
Conduit1/3 AD1/3 |
ΦB2(mm) |
ΦB1/B3(mm) |
Total lengthC (mm) |
Total widthd (mm) |
Mounting holee (mm) |
Packing unit
(pcs/pack) |
| Grey |
Black |
| JQT AD10.0/2×10.0G |
JQT AD10.0/2×10.0B |
10.0 |
2×10.0 |
17 |
17 |
29 |
40 |
2×4 |
50 |
| JQT AD13.0/2×13.0G |
JQT AD13.0/2×13.0B |
13.0 |
2×13.0 |
20 |
20 |
31 |
43 |
2×4 |
25 |
| JQT AD15.8/2×15.8G |
JQT AD15.8/2×15.8B |
15.8 |
2×15.8 |
23 |
23 |
35 |
50 |
2×4 |
25 |
| JQT AD18.5/2×18.5G |
JQT AD18.5/2×18.5B |
18.5 |
2×18.5 |
26 |
26 |
39 |
55 |
2×4 |
25 |
| JQT AD21.2/2×21.2G |
JQT AD21.2/2×21.2B |
21.2 |
2×21.2 |
29 |
29 |
43 |
60 |
2×4 |
10 |
| JQT AD25.5/2×25.5G |
JQT AD25.5/2×25.5B |
25.5 |
2×25.5 |
33 |
33 |
50 |
70 |
2×4 |
10 |
| *JQT AD28.5/2×15.8G |
JQT AD28.5/2×15.8B |
28.5 |
2×15.8 |
36.5 |
25.5 |
56 |
65 |
2×4 |
10 |
| *JQT AD28.5/2×21.2G |
JQT AD28.5/2×21.2B |
28.5 |
2×21.2 |
32 |
36.5 |
51 |
78 |
2×4 |
10 |
| JQT AD28.5/2×28.5G |
JQT AD28.5/2×28.5B |
28.5 |
2×28.5 |
36 |
36 |
56 |
80 |
2×4 |
10 |
| *JQT AD28.5/2×34.5G |
JQT AD34.5/2×28.5B |
28.5 |
2×34.5 |
36.5 |
42.5 |
57.5 |
83.5 |
2×4 |
5 |
| JQT AD34.5/2×34.5G |
JQT AD34.5/2×34.5B |
34.5 |
2×34.5 |
42 |
42 |
68 |
96 |
2×4 |
5 |
| JQT AD42.5/2×42.5G |
JQT AD42.5/2×42.5B |
42.5 |
2×42.5 |
51 |
51 |
80 |
117 |
2×4 |
5 |
| JQT AD54.5/2×54.5G |
JQT AD54.5/2×54.5B |
54.5 |
2×54.5 |
52.5 |
52.5 |
97 |
137 |
2×4 |
5 |
* in case of shortage, there are quantitative requirements
