JQT-PA Nylon Tee

Product Name：Nylon Tee

Product Code：JQT-PA

General
Variants

JQT PA Nylon Tee
Material	PA66
Color	Dark grey (RAL 7037), black (RAL 9005)
Temperature	-40℃ ~ 115℃, 150℃ in a short time
Product Description	For connection between three sections of conduits

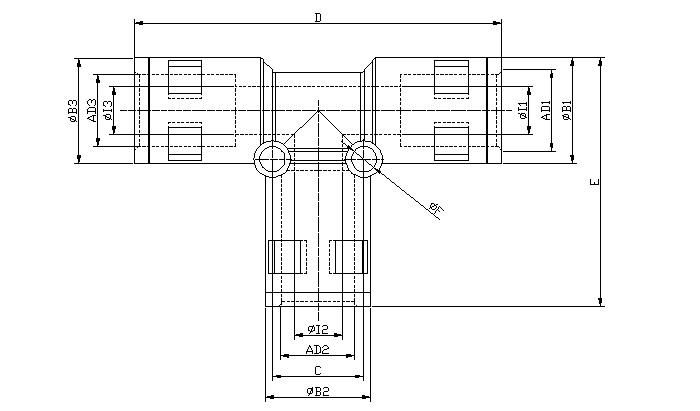

Model		Conduit2ad2	Conduit1/3 AD1/3	ΦB2(mm)	ΦB1/B3(mm)	Total lengthe (mm)	Total widthd (mm)	Mounting holeF (mm)	Hole spacingC (mm)	Packing unit (pcs/pack)
Grey	Black	Conduit2ad2	Conduit1/3 AD1/3	ΦB2(mm)	ΦB1/B3(mm)	Total lengthe (mm)	Total widthd (mm)	Mounting holeF (mm)	Hole spacingC (mm)	Packing unit (pcs/pack)
JQT-PA AD13.0/2×13.0G	JQT-PA AD13.0/2×13.0B	13	2×13.0	20	20	46.5	71	2×4	20	25
JQT-PA AD15.8/2×15.8G	JQT-PA AD15.8/2×15.8B	15.8	2×15.8	23	23	51.5	80	2×4	23	25
JQT-PA AD21.2/2×21.2G	JQT-PA AD21.2/2×21.2B	21.2	2×21.2	29.5	29.5	66	93.5	2×6.5	27	10
JQT-PA AD28.5/2×21.2G	JQT-PA AD28.5/2×21.2B	28.5	2×21.2	37	29.5	68.2	99.5	2×6.5	34	10
JQT-PA AD28.5/2×28.5G	JQT-PA AD28.5/2×28.5B	28.5	2×28.5	37	37	75	106	2×6.5	34	10
JQT-PA AD34.5/2×34.5G	JQT-PA AD34.5/2×34.5B	34.5	2×34.5	44	44	85	119	2×6.5	43	5
JQT-PA AD34.5/2×28.5G	JQT-PA AD34.5/2×28.5B	34.5	2×28.5	44	37	78	113	2×6.5	42	5
JQT-PA AD42.5/2×42.5G	JQT-PA AD42.5/2×42.5B	42.5	2×42.5	52	52	94	134	2×6.5	50	5
JQT-PA AD54.5/2×54.5G	JQT-PA AD54.5/2×54.5B	54.5	2×54.5	64	64	105	146	2×6.5	61	5
