TAM Metal Thread Adapter

Product Name：Metal Thread Adapter

Product Code：TAM

General
Variants

TAM Metal Thread Adapter
Performance	Pass ROHS test
Materials	Nickel plated brass with modified rubber seal
Degree of protection	IP68

TAM-M/P Metric Thread To PG Thread

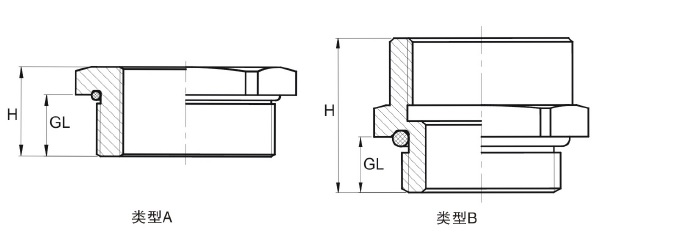

Model	External thread	Internal thread	Thread length L1(mm)	Total length(mm)	Wrench size(mm)	Form	Packing unit (pcs/pack)
TAM-M16/P07	M16×1.5	PG7	6	8.5	18	A	50
TAM-M16/P09	M16×1.5	PG9	6	16.5	19	B	50
TAM-M16/P11	M16×1.5	PG11	6	16.5	22	B	50
TAM-M18/P09	M18×1.5	PG9	6	16.5	21	B	50
TAM-M18/P11	M18×1.5	PG11	6	16.5	22	B	50
TAM-M18/P13	M18×1.5	PG13.5	6	16.5	24	B	50
TAM-M20/P11	M20×1.5	PG11	7	17.5	24	B	50
TAM-M20/P13	M20×1.5	PG13.5	7	17.5	24	B	50
TAM-M20/P16	M20×1.5	PG16	7	20	27	B	50
TAM-M25/P16	M25×1.5	PG16	7	20	28	B	25
TAM-M25/P21	M25×1.5	PG21	7	25	32	B	25
TAM-M27/P13	M27×2.0	PG13.5	7	10	30	A	50
TAM-M27/P16	M27×2.0	PG16	7	10	30	A	25
TAM-M32/P16	M32×1.5	PG16	8	11.5	36	A	25
TAM-M32/P21	M32×1.5	PG21	8	11.5	36	A	25
TAM-M32/P29	M32×1.5	PG29	8	23.5	40	B	25
TAM-M40/P29	M40×1.5	PG29	9	25	45	B	25
TAM-M40/P36	M40×1.5	PG36	9	27.5	50	B	25
TAM-M50/P21	M50×1.5	PG21	10	14	55	A	25
TAM-M50/P29	M50×1.5	PG29	10	14	55	A	25

TAM-P/M PG Thread To Metric Thread

Model	External thread	Internal thread	Thread length L1(mm)	Total length(mm)	Wrench size(mm)	Form	Packing unit (pcs/pack)
TAM-P09/M16	PG9	M16×1.5	6	16.5	20	B	50
TAM-P09/M20	PG9	M20×1.5	6	17.5	24	B	50
TAM-P11/M20	PG11	M20×1.5	6	17.5	24	B	50
TAM-P13/M20	PG13.5	M20×1.5	7	18	24	B	50
TAM-P16/M20	PG16	M20×1.5	7	18	24	B	50
TAM-P16/M25	PG16	M25×1.5	7	19	28	B	25
TAM-P21/M25	PG21	M25×1.5	7	18.5	32	B	25
TAM-P21/M32	PG21	M32×1.5	7	20	36	B	25
TAM-P21/M40	PG21	M40×1.5	7	23	45	B	25
TAM-P29/M40	PG29	M40×1.5	8	24	45	B	25
TAM-P36/M50	PG36	M50×1.5	9	25	55	B	25
TAM-P42/M63	PG42	M63×1.5	10	31	70	B	10
