GPJ/GPJC German Standard Metal Conduit/plastic Coated Metal Conduit Connector

Product Name：German Standard Metal Conduit/plastic Coated Metal Conduit Connector

Product Code：GPJ/GPJC

General
Variants

GPJ/GPJC German Standard Metal Conduit/plastic Coated Metal Conduit Connector
Introduction	GPJ is used to connect German standard non plastic coated metal conduits such as GMH and GMD; Gpjc is used for German standard plastic coated metal conduits such as gmh-pvc, gmh-pu and gmd-pu
Features	The utility model has the advantages of simple structure, convenient installation and beautiful appearance
Material	Connector body: Nickel plated brass;Sealing ring: Modified rubber sheath: Brass, gland: TPE
Temperature	-40℃~125℃,IP66

GPJ/GPJC-M Metric Thread

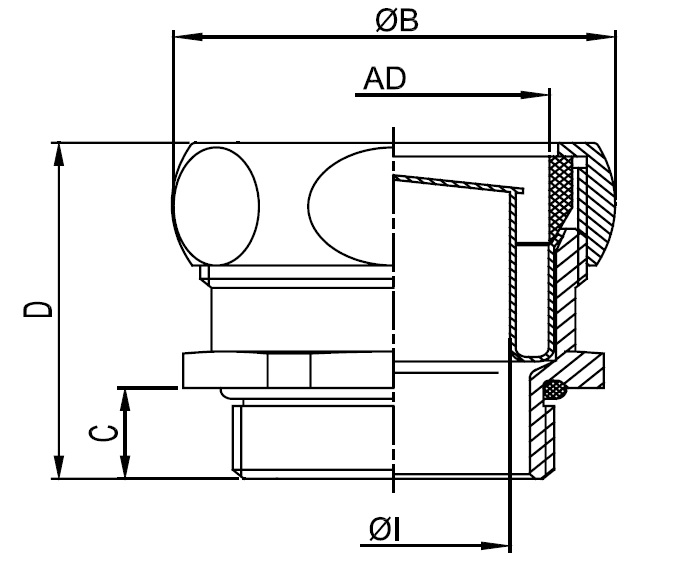

Model		Thread	Conduit size	ΦI(mm)		ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ	GPJC	Thread	Conduit size	GPJ	GPJC	ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ-M10	GPJC-M10	M10×1.0	AD10	6.5	6	19	6	31	15	17	50
GPJ-M12	GPJC-M12	M12×1.5	AD14	9	8.5	23	6	33	19	21	50
GPJ-M16	GPJC-M16	M16×1.5	AD17	12.5	11.5	27	7	33	23	26	50
GPJ-M20	GPJC-M 20	M20×1.5	AD21	16	15.5	31	7	33	27	30	50
GPJ-M25	GPJC-M25	M25×1.5	AD27	21	20.5	39	7	41	34	36	50
GPJ-M32	GPJC-M32	M32×1.5	AD36	27.5	27.5	48	8	43	45	45	20
GPJ-M40	GPJC-M40	M40×1.5	AD45	35.5	35	57	9	43	52	55	10
GPJ-M50	GPJC-M50	M50×1.5	AD56	45.5	45	70	9	49	65	65	10
GPJ-M63	GPJC-M63	M63×1.5	AD56	49	47.5	70	10	49	65	65	5

GPJ/GPJC-M-L Metric Long Thread

Model		Thread	Conduit size	ΦI(mm)		ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ	GPJC	Thread	Conduit size	GPJ	GPJC	ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ-M10-L	GPJC-M10-L	M10×1.0	AD10	6.5	6	19	10	31	15	17	50
GPJ-M12-L	GPJC-M12-L	M12×1.5	AD14	9	8.5	23	10	33	19	21	50
GPJ-M16-L	GPJC-M16-L	M16×1.5	AD17	12.5	11.5	27	10	33	23	26	50
GPJ-M20-L	GPJC-M20-L	M20×1.5	AD21	16	15.5	31	10	33	27	30	50
GPJ-M25-L	GPJC-M25-L	M25×1.5	AD27	21	20.5	39	11	41	34	36	50
GPJ-M32-L	GPJC-M32-L	M32×1.5	AD36	27.5	27.5	48	13	43	45	45	20
GPJ-M40-L	GPJC-M40-L	M40×1.5	AD45	35.5	35	57	13	43	52	55	10
GPJ-M50-L	GPJC-M50-L	M50×1.5	AD56	45.5	45	70	14	49	65	65	10
GPJ-M63-L	GPJC-M63-L	M63×1.5	AD56	49	47.5	70	14	49	65	65	5

GPJ/GPJC-P German PG Thread

Model		Thread	Conduit size	ΦI(mm)		ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ	GPJC	Thread	Conduit size	GPJ	GPJC	ΦB (mm)	C (mm)	D (mm)	SW1 (mm)	SW2 (mm)	Packing unit (pcs/pack)
GPJ-P07	GPJC-P07	PG7	AD10	6.5	6	19	7	28	15	17	50
GPJ-P09	GPJC-P09	PG9	AD14	10	8.5	23	7	30	19	21	50
GPJ-P11	GPJC-P11	PG11	AD17	12.5	11.5	27	7	30	23	26	50
GPJ-P13	GPJC-P13	PG13.5	AD19	14.5	13.5	29	7	30	26	27	50
GPJ-P16	GPJC-P16	PG16	AD21	16	15.5	31	7	30	27	30	50
GPJ-P21	GPJC-P21	PG21	AD27	21	20.5	39	10	40	34	36	20
GPJ-P29	GPJC-P29	PG29	AD36	29	27.5	48	10	40	45	45	20
GPJ-P36	GPJC-P36	PG36	AD45	38	36.5	57	10	40	52	55	10
GPJ-P48	GPJC-P48	PG48	AD56	49	47.5	70	10	45	65	65	5
