JHH Self Fixing Butt Connector Of Zinc Alloy Steel Pipe

Product Name：Self Fixing Butt Connector Of Zinc Alloy Steel Pipe

Product Code：JHH

General
Variants

JHH Zinc Alloy Steel Pipe Self Fixing Butt Connector
Introduction	Connecting device of seamless steel pipe and seamless steel pipe

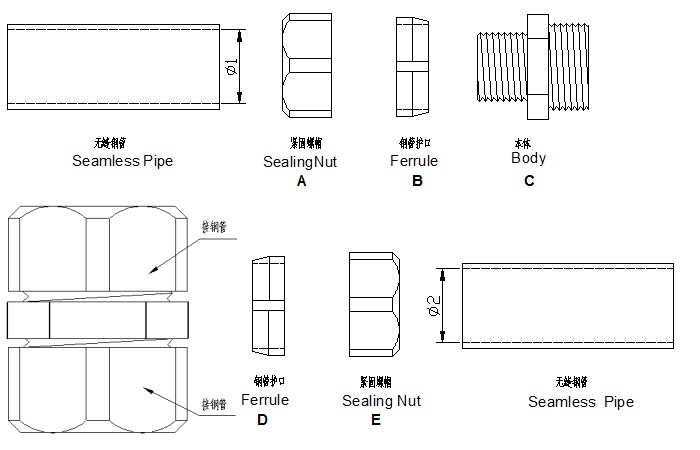

Structure	Both ends are steel pipe thread with tightening nuts, which are used to connect steel pipes
Material	Zinc alloy
Ordering instructions	The model and thread size of steel pipe shall be indicated in the order. For example, JHH-15B-15B indicates that one end is connected with 15 thick steel pipe, and the other end is connected with 15 thick steel pipe. In addition, the model of round nut is provided. Please call for specific consultation

Steel pipe Φ1

Steel pipe Φ2

Packing unit
(pcs/pack)

Thick steel pipe B(water gas pipe)

Thin steel pipe A(wire pipe)

Thick steel pipe B(water gas pipe)

Thin steel pipe A(wire pipe)

Nominal

BSP

OD×Thickness

Nominal

BSP

OD×Thickness

Nominal

BSP

OD×Thickness

Nominal

BSP

OD×Thickness

#12

3/8"

17×2.25

#15

5/8"

15.87×1.60

#12

3/8"

17×2.25

#15

5/8"

15.87×1.60

#15

1/2"

21.25×2.75

#20

3/4"

19.05×1.80

#15

1/2"

21.25×2.75

#20

3/4"

19.05×1.80

#20

3/4"

26.75×2.75

#25

25.40×1.80

#20

3/4"

26.75×2.75

#25

25.40×1.80

#25

33.5×3.25

#32

1 1/4"

31.75×1.80

#25

33.5×3.25

#32

1 1/4"

31.75×1.80

#32

1 1/4"

42.25×3.25

#40

1 1/2"

38.10×1.80

#32

1 1/4"

42.25×3.25

#40

1 1/2"

38.10×1.80

#40

1 1/2"

48×3.5

#50

50.80×2.0

#40

1 1/2"

48×3.5

#50

50.80×2.0

#50

60×3.5

#70

2 1/2"

63.50×2.5

#50

60×3.5

#70

2 1/2"

63.50×2.5

#70

2 1/2"

75.5×3.75

#80

76.2×3.20

#70

2 1/2"

75.5×3.75

#80

76.2×3.20

#80

88.5×4

#80

88.5×4

#100

114×4

#100

114×4

#125

140×4.5

#125

140×4.5

#150

165×4.5

#150

165×4.5
