JGJ Zinc Alloy Self Fixing Metal Conduit Steel Pipe Connector |
| Introduction |
Connection between metal conduit and unthreaded steel pipe |
 |
| Structure |

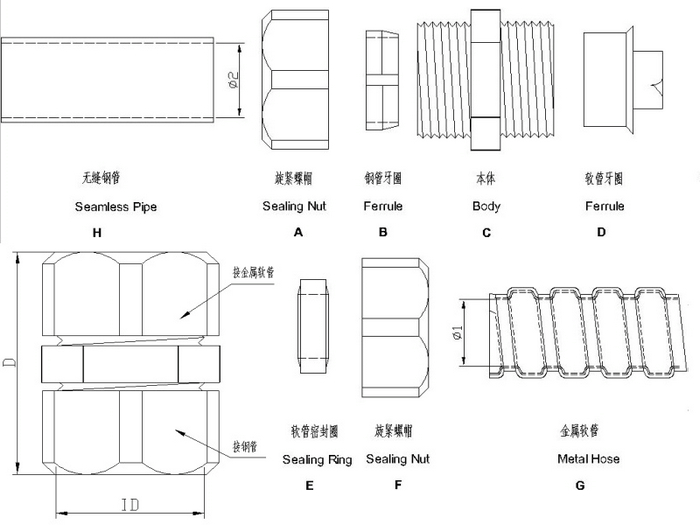

One end is a conduit guard (D + e) with a screw nut F, which is used to connect the metal conduit, and the other end is a screw nut (a) with a steel pipe ring (b), which is used to connect the seamless steel pipe |
| Material |
A. B, C and F are zinc alloy, D is galvanized iron sheet, and E is TPE |
| Ordering instructions |
The order shall indicate the model of metal conduit and steel pipe. For example, JGJ-15-15B indicates that one end is connected with 15 metal conduit and the other end is 15 thick steel pipe. In addition, the model of round nut is provided. Please call for specific consultation |
