JMH P3 Type Single Buckle Galvanized Metal Conduit

Product Name：P3 Type Single Buckle Galvanized Metal Conduit

Product Code：JMH

JMH P3 Single Button Galvanized Metal Conduit
Structure	It is made of galvanized steel strip
Performance	It has good bending flexibility and easy installation, and plays the role of protecting wires
Temperature	The maximum temperature resistance is 220℃, IP40
Application	Construction, machinery and other industries

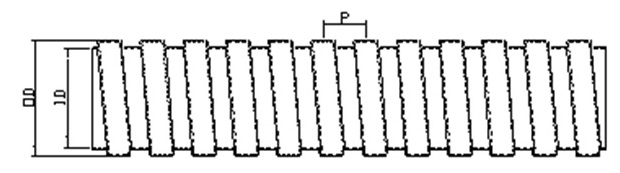

Modelmodel	Nominal inner diameter(mm)	Englishmodels	Minimum inner diameterID (mm)	Outer diameter and allowable deviation OD (mm)	Pitch P (mm)	Natural bending radius(mm)	Packaging quantity(M/volume)
JMH-6	Φ6	3/16"	5.7	8.20±0.25	2.7	40	200
JMH-8	Φ8	5/16"	7.7	11.00±0.30	4	45	100
JMH-10	Φ10	1/4"	9.7	13.50±0.35	4.7	55	100
JMH-12	Φ12(13)	3/8"	11.7	15.80±0.35	4.7	65	100
JMH-15	Φ15(16)	1/2"	14.7	19.00±0.35	5.7	85	100
JMH-20	Φ20(19)	3/4"	19.6	23.30±0.40	6.4	100	100
JMH-25	Φ25	1"	24.5	29.30±0.40	8.7	120	50
JMH-32	Φ32	1 1/4"	31.5	37.00±0.50	10.5	165	50
JMH-38	Φ38(40)	1 1/2"	37.5	43.00±0.60	11.4	180	50
JMH-51	Φ51(50)	2"	49.5	58.00±1.00	11.4	190	20
JMH-64	Φ64(70)	2 1/2"	62.5	72.50±1.50	14.2	280	20
JMH-75	Φ75(80)	3"	73	83.50±2.00	14.2	320	20
JMH-100	Φ100	4"	97	108.50±3.00	14.2	380	10
JMH-125	Φ125	5"	122	133.50±3.00	14.2	450	5
JMH-150	Φ150	6"	146	158.50±4.00	14.2	500	5
