JPH Zinc Alloy Steel Pipe External Thread End Connector

Product Name：Zinc Alloy Steel Pipe External Thread End Connector

Product Code：JPH

General
Variants

JPH Zinc Alloy Steel Pipe External Thread End Connector
Introduction	Connecting device between box and steel pipe
Structure	One end is a self fixing steel pipe protective opening with a tightening nut, which is used to connect the steel pipe, and the other end is an external thread, which is connected to the cabinet or cabinet body by opening a hole on the cabinet or cabinet body
Material	A. C and F are zinc alloy, B is modified rubber and D is galvanized steel
Ordering instructions	The model and thread size of the conduit shall be indicated in the order. For example, jph-15b-g1/2 indicates that one end is a 15 thick steel pipe, and the external thread of the other end is G1/2 ". In addition, the model of round nut shall be provided, and the specific information shall be consulted

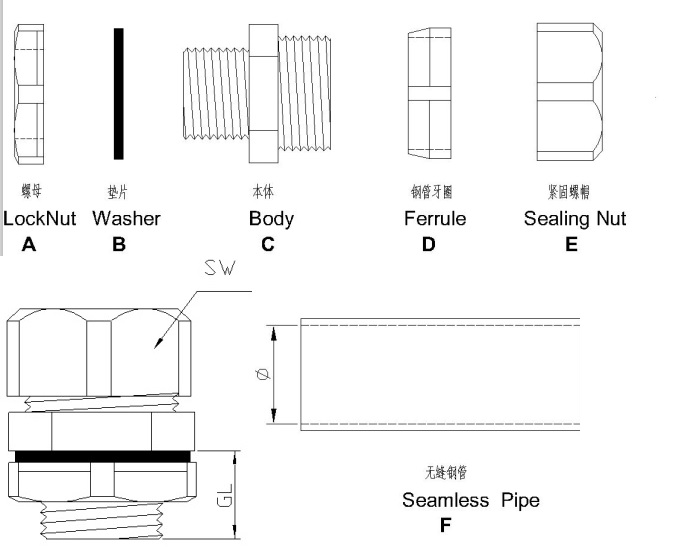

Steel pipe Φ						Some recommended threads*			Thread length GL (mm)	Wrench size SW(mm)	Packing unit (pcs/pack)
Thick steel pipe B(water gas pipe)			Thin steel pipe A(wire pipe)			Some recommended threads*
Nominal	BSP	OD×Thickness	Nominal	BSP	OD×Thickness	G Thread	Metric Thread	PG Thread
#12	3/8"	17×2.25	#15	5/8"	15.87×1.60	G3/8"	M20×1.5	PG11/PG13.5	11	26	50
#15	1/2"	21.25×2.75	#20	3/4"	19.05×1.80	G1/2"	M20×1.5/M24×1.5	PG13.5/PG16	12.5	30.5	50
#20	3/4"	26.75×2.75	#25	1"	25.40×1.80	G3/4"	M25×1.5/M27×1.5/M30×2.0	PG21	14	35	25
#25	1"	33.5×3.25	#32	1 1/4"	31.75×1.80	G1"	M32×1.5/M36×2.0	PG29	14.5	42	20
#32	1 1/4"	42.25×3.25	#40	1 1/2"	38.10×1.80	G1 1/4"	M36×2.0/M40×1.5/M48×2.0	PG29	17	52	10
#40	1 1/2"	48×3.5	#50	2"	50.80×2.0	G1 1/2"	M48×2.0/M50×1.5	PG36/PG42	17.5	59	10
#50	2"	60×3.5	#70	2 1/2"	63.50×2.5	G2"	M60×2.0/M63×1.5/M64×2.0	PG48	20	73.5	5
#70	2 1/2"	75.5×3.75	#80	3"	76.2×3.20	G2 1/2"	M76×2.0		23	89	2
#80	3"	88.5×4				G3"	M88×2.0		25	102	2
#100	4"	114×4				G4"	M114×2.0		28	133	2
#125	5"	140×4.5				G5"	M140×2.0		31.5	163	2
#150	6"	165×4.5				G6"	M164×2.0		30.4	188	1

* only some threads are listed here, in which G Thread is the standard model. NPT, thin steel thread and other special models can be customized.
