JPJ Zinc Alloy Metal Conduit External Thread End Connector |
| Introduction |
The connecting device between the box and the metal conduit is also called end connector |
 |
| Structure |

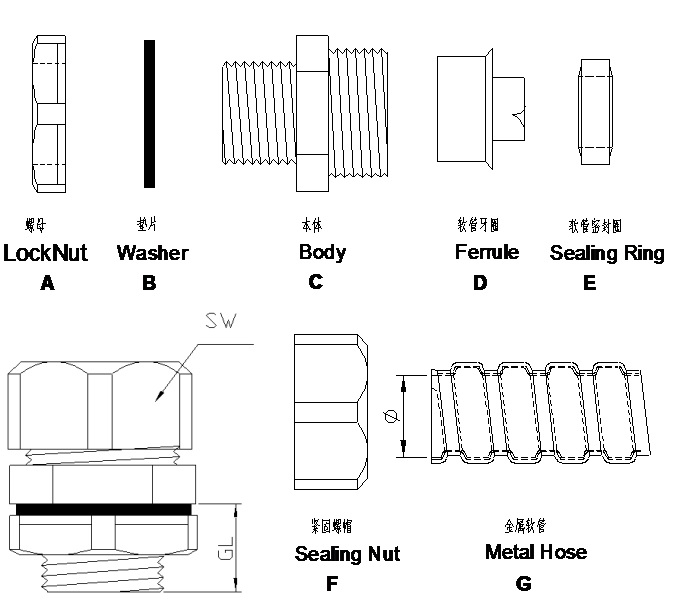

One end is a conduit guard with a screw nut, which is used to connect the metal conduit, and the other end is an external thread, which is connected to the box or cabinet |
| Material |
A. C and F are zinc alloy, B is modified rubber, D is galvanized iron sheet, and E is TPE |
| Ordering instructions |
The order shall indicate the conduit model and thread size. For example, JPJ-15-G1/2 indicates a metal conduit with 15 at one end and G1/2 "at the other end. It is applicable to JM, jmh-pvc, jmh-pu, JMB, JMG and other metal conduits. In addition, the model of round nut shall be provided for specific consultation |
