JPJS Stainless Steel Metal Conduit External Thread Connector |
| Introduction |
The connecting device between the box and the metal conduit is also called end connector |
 |
| Structure |
One end is a conduit protective opening with a tightening nut, which is used to connect the metal conduit, and the other end is externally threaded, which is connected to the cabinet or cabinet body by opening a hole on the cabinet or cabinet body |
| Material |

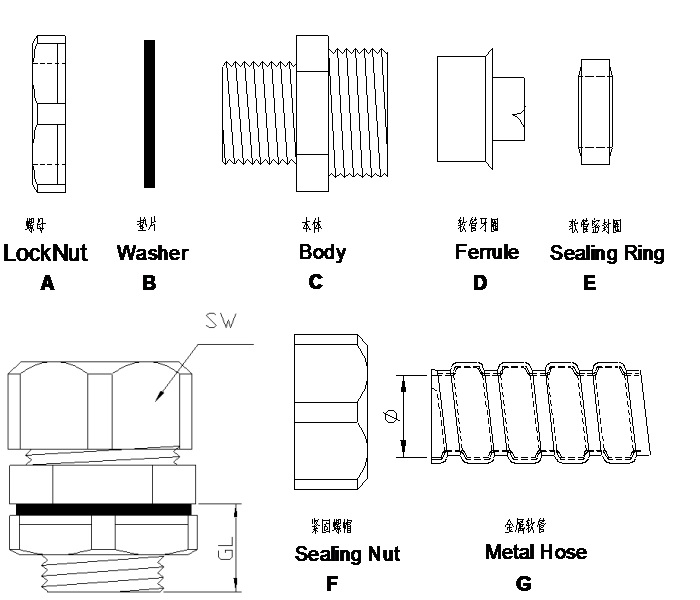

A. C and F are zinc alloy, B is modified rubber, D is galvanized iron sheet, and E is TPE |
| Ordering instructions |
The model and thread size of the conduit shall be indicated in the order. For example, jpjs-15-g1/2 refers to the metal conduit with one end of 15 and the external thread of the other end is G1/2“ |
