JPN Zinc Alloy Metal Conduit Female Connector |
| Introduction |
Connection between metal conduit and parts with external thread |
 |

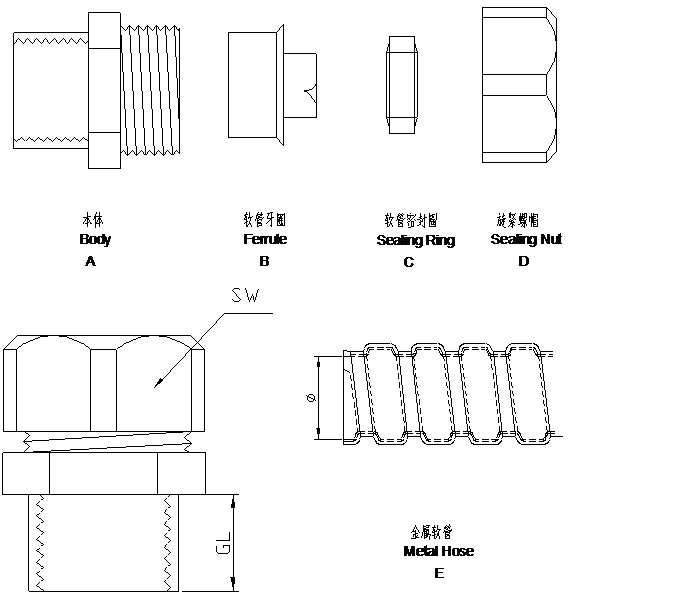

| Structure |
One end is a conduit guard with a screw nut, which is used to connect the metal conduit, and the other end is an internal thread, which is used to connect the threaded steel pipe or the equipment equipped with an external thread connector |
| Material |
A. D is zinc alloy, B is galvanized iron sheet and C is TPE |
| Ordering instructions |
The order shall indicate the conduit model and thread size. For example, JPN-15-G1/2 indicates a metal conduit with 15 at one end and G1/2 "at the other end. In addition, the model of round nut shall be provided for specific consultation |
