JSK Nylon Cable Gland |
| Material |

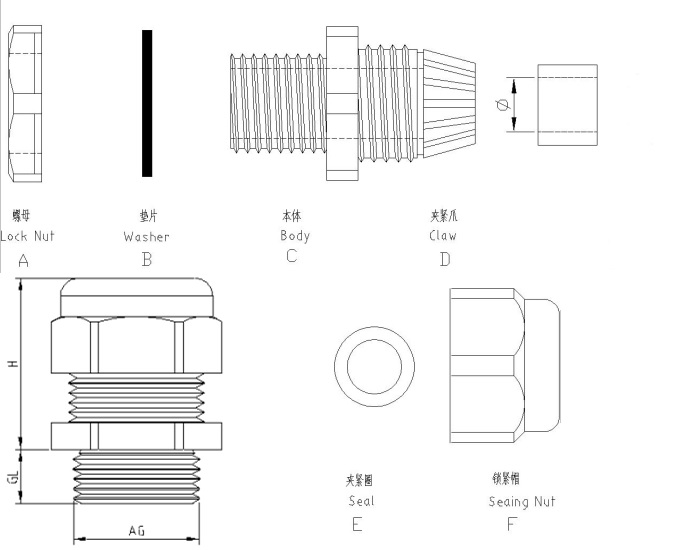

A. Parts C, D and F are made of Environmental Friendly Nylon 66, Part B is made of aging resistant silicone rubber, and Part E is made of oil resistant nitrile rubber |
 |
| Temperature |
Static: - 40℃ ~ 100℃, up to 120℃ in a short time; dynamic: - 20℃ ~ 80℃, up to 100℃ in a short time |
| Color |
Light grey (RAL 7035), black (RAL 9005) |
| protective flame retardant |
Within the specified cable range, with appropriate O-ring, the protection grade can reach IP67, flame retardant V2 (UL94), without halogen, phosphorus and cadmium, and pass ROHS test, UV resistance and anti-aging test |
