Product Name：Nylon Porous Cable Gland
Product Code：JSK-MH
Inquiry
General
Variants

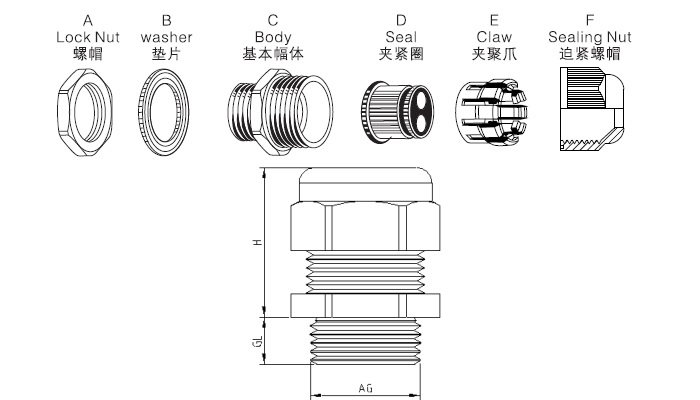

JSK MH Nylon Porous Cable Gland
Material
Nylon 66 seal material: nitrile rubber
Temperature
Static: - 40℃ ~ 100℃, up to 120℃ in a short time; dynamic: - 20℃ ~ 80℃, up to 100℃ in a short time
Color
Grey, black
protective flame retardant
Within the specified cable range and with appropriate O-ring, the protection grade can reach IP68, without halogen, phosphorus and cadmium, and pass ROHS test, UV resistance and anti-aging test
JSK-MH-M Metric Thread
Holes
Model
Thread
Cable range
Φ(mm)
Thread outer diameter
AG (mm)
Thread length
GL (mm)
Wrench size
A/F (mm)
Packing unit
(pcs/pack)
Grey
Black
2 holes
JSK-MH-M12×1.5G/2×3
JSK-MH-M12×1.5B/2×3
M12×1.5
2~3.1
12
8.5
18/19
50
JSK-MH-M16×1.5G/2×4
JSK-MH-M16×1.5B/2×4
M16×1.5
3~4.1
16
15
22/22
50
JSK-MH-M20×1.5G/2×3
JSK-MH-M20×1.5B/2×3
M20×1.5
2.5~3.5
20
15
27/27
50
JSK-MH-M20×1.5G/2×6
JSK-MH-M20×1.5B/2×6
M20×1.5
4.3~6.1
20
15
27/27
50
JSK-MH-M25×1.5G/2×5
JSK-MH-M25×1.5B/2×5
M25×1.5
3.6~5.2
25
15
33/33
50
JSK-MH-M25×1.5G/2×8
JSK-MH-M25×1.5B/2×8
M25×1.5
6.4~8.7
25
15
33/33
50
JSK-MH-M32×1.5G/2×10
JSK-MH-M32×1.5B/2×10
M32×1.5
7.7~10
32
15
41/42
10
3 holes
JSK-MH-M12×1.5G/3×2
JSK-MH-M12×1.5B/3×2
M12×1.5
1.6~2.6
12
8.5
18/19
50
JSK-MH-M16×1.5G/3×4
JSK-MH-M16×1.5B/3×4
M16×1.5
3~4.2
16
15
22/22
50
JSK-MH-M20×1.5G/3×3
JSK-MH-M20×1.5B/3×3
M20×1.5
2.6~3.6
20
15
27/27
50
JSK-MH-M20×1.5G/3×5
JSK-MH-M20×1.5B/3×5
M20×1.5
3.5~5.2
20
15
27/27
50
JSK-MH-M25×1.5G/3×5
JSK-MH-M25×1.5B/3×5
M25×1.5
3.5~5.2
25
15
33/33
50
JSK-MH-M25×1.5G/3×8
JSK-MH-M25×1.5B/3×8
M25×1.5
6.2~8
25
15
33/33
50
JSK-MH-M32×1.5G/3×10
JSK-MH-M32×1.5B/3×10
M32×1.5
7.7~10
32
15
41/42
10
4 holes
JSK-MH-M12×1.5G/4×2
JSK-MH-M12×1.5B/4×2
M12×1.5
1.3~2.3
12
8.5
18/19
50
JSK-MH-M16×1.5G/4×3
JSK-MH-M16×1.5B/4×3
M16×1.5
2.4~3.4
16
15
22/22
50
JSK-MH-M20×1.5G/4×3
JSK-MH-M20×1.5B/4×3
M20×1.5
2.5~3.6
20
15
27/27
50
JSK-MH-M20×1.5G/4×4
JSK-MH-M20×1.5B/4×4
M20×1.5
3.4~4.8
20
15
27/27
50
JSK-MH-M25×1.5G/4×5
JSK-MH-M25×1.5B/4×5
M25×1.5
3.8~5.2
25
15
33/33
50
JSK-MH-M25×1.5G/4×7
JSK-MH-M25×1.5B/4×7
M25×1.5
5.6~7.3
25
15
33/33
50
JSK-MH-M32×1.5G/4×9
JSK-MH-M32×1.5B/4×9
M32×1.5
7~9
32
15
41/42
10
5 holes
JSK-MH-M16×1.5G/5×2
JSK-MH-M16×1.5B/5×2
M16×1.5
2~2.5
16
15
22/22
50
JSK-MH-M20×1.5G/5×3
JSK-MH-M20×1.5B/5×3
M20×1.5
2~3.1
20
15
27/27
50
JSK-MH-M20×1.5G/5×4
JSK-MH-M20×1.5B/5×4
M20×1.5
3~4.1
20
15
27/27
50
JSK-MH-M25×1.5G/5×3
JSK-MH-M25×1.5B/5×3
M25×1.5
2.6~3.6
25
15
33/33
50
JSK-MH-M25×1.5G/5×6
JSK-MH-M25×1.5B/5×6
M25×1.5
4.6~6
25
15
33/33
50
JSK-MH-M32×1.5G/5×8
JSK-MH-M32×1.5B/5×8
M32×1.5
6~8
32
15
41/42
10
6 holes
JSK-MH-M16×1.5G/6×2
JSK-MH-M16×1.5B/6×2
M16×1.5
1.4~2.1
16
15
22/22
50
JSK-MH-M20×1.5G/6×3
JSK-MH-M20×1.5B/6×3
M20×1.5
2~3
20
15
27/27
50
JSK-MH-M25×1.5G/6×3
JSK-MH-M25×1.5B/6×3
M25×1.5
2~3
25
15
33/33
50
JSK-MH-M25×1.5G/6×5
JSK-MH-M25×1.5B/6×5
M25×1.5
3.6~5.2
25
15
33/33
50
JSK-MH-M32×1.5G/6×7
JSK-MH-M32×1.5B/6×7
M32×1.5
5.6~7
32
15
41/42
10
7 holes
JSK-MH-M20×1.5G/7×3
JSK-MH-M20×1.5B/7×3
M20×1.5
2~3
20
15
27/27
50
JSK-MH-M25×1.5G/7×3
JSK-MH-M25×1.5B/7×3
M25×1.5
2~3
25
15
33/33
50
JSK-MH-M32×1.5G/7×6
JSK-MH-M32×1.5B/7×6
M32×1.5
4.6~6
32
15
41/42
10
JSK-MH-P German PG Thread
Holes
Model
Thread
Cable range
Φ(mm)
Thread outer diameter
AG (mm)
Thread length
GL (mm)
Wrench size
A/F (mm)
Packing unit
(pcs/pack)
Grey
Black
2 holes
JSK-MH-P07G/2×3
JSK-MH-P07B/2×3
PG7
2~3.1
12.5
8
17/19
50
JSK-MH-P09G/2×3
JSK-MH-P09B/2×3
PG9
2~3.1
15.2
8.2
22/19
50
JSK-MH-P11G/2×3
JSK-MH-P11B/2×3
PG11
2~3
18.6
10
24/22
50
JSK-MH-P13G/2×5
JSK-MH-P13B/2×5
PG13.5
3.5~5.2
20.4
10
27/24
50
JSK-MH-P16G/2×6
JSK-MH-P16B/2×6
PG16
4.3~6.1
22.5
10.8
30/27
50
JSK-MH-P21G/2×8
JSK-MH-P21B/2×8
PG21
6.4~8.7
28.3
12
36/33
50
JSK-MH-P29G/2×10
JSK-MH-P29B/2×10
PG29
7.7~10
37
12
46/41
10
