JWK 90 Degree Nylon Cable Gland

Product Name：90 Degree Nylon Cable Gland

Product Code：JWK

General
Variants

JWK 90 Degree Nylon Cable Gland

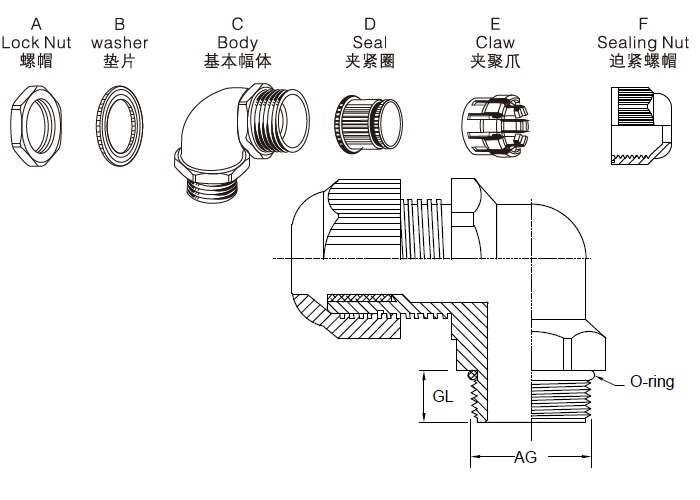

Material	A. C.e.f parts are made of Environmental Friendly Nylon 66 (nylon 66) raw materials B. D. adopt aging resistant rubber
Temperature	-From 40℃ to 100℃, it can reach 120℃ in a short time
Color	Light grey (RAL 7035), black (RAL 9005)
protective flame retardant	Within the specified cable range and using appropriate O-ring, the protection grade can reach IP68

Model		Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
Greyish white	Black	Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JWK-M16×1.5G	JWK-M16×1.5B	M16×1.5	4~7	16	10	22/22	50
JWK-M16×1.5G-D	JWK-M16×1.5B-D	M16×1.5	6~10	16	10	22/22	50
JWK-M20×1.5G	JWK-M20×1.5B	M20×1.5	6~11	20	15	27/27	50
JWK-M20×1.5G-D	JWK-M20×1.5B-D	M20×1.5	9~14	20	15	27/27	50
JWK-M25×1.5G	JWK-M25×1.5B	M25×1.5	10~16	25	15	33/33	50
JWK-M25×1.5G-D	JWK-M25×1.5B-D	M25×1.5	13~18	25	15	33/33	50
JWK-M32×1.5G-H	JWK-M32×1.5B-H	M32×1.5	15~22	32	15	41/42	50
JWK-M32×1.5G	JWK-M32×1.5B	M32×1.5	18~25	32	15	41/42	50
JWK-M40×1.5G-H	JWK-M40×1.5B-H	M40×1.5	20~25	40	20	50/52	50
JWK-M40×1.5G	JWK-M40×1.5B	M40×1.5	24~30	40	20	50/52	50
