JSM Thickened Half Claw Metal Cable Gland

Product Name：Thickened Half Claw Metal Cable Gland

Product Code：JSM

General
Variants

JSM Thickened Half Claw Metal Cable Gland

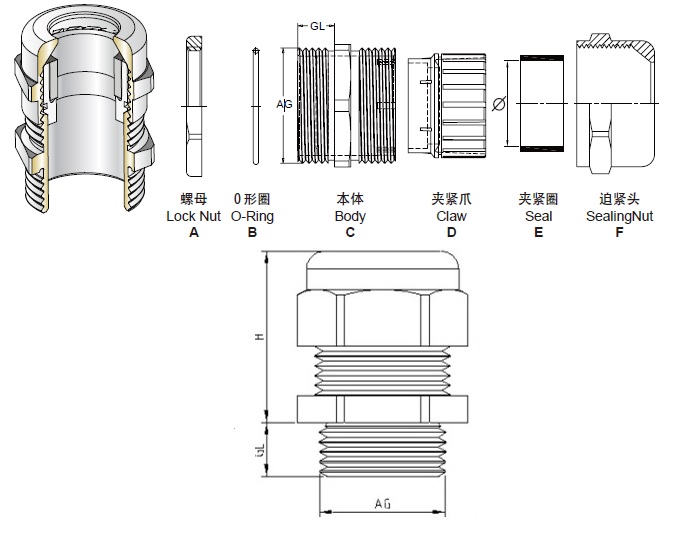

Introduction	Half claw thickened design, the clamping ring adopts aging resistant silicone rubber and has a wide range of temperature resistance
Temperature	-40℃~120℃
Material	A. C. f parts are made of nickel plated brass D is made of PA B. E is made of aging resistant silicone rubber
protection grade	Within the specified cable range and using appropriate O-ring, the protection grade can reach IP68. The special clamping claw is designed to buckle with the concave convex of the clamping ring, which is convenient for time-saving assembly with the clamping head. The clamping cable has a wide range and strong tensile resistance. It can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, oil, grease and general solvents

JSM-M Metric Thread

Model	Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	H (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM-M8×1.25	M8×1.25	2~4.5	8	6	13	11/11	75
JSM-M12×1.5	M12×1.5	3~6.5	10	6	19	14/14	50
JSM-M14×1.5	M14×1.5	3~6.5	12	6	19	18/14	50
JSM-M14×1.5-D	M14×1.5	4~8	14	7	19	18/18	32
JSM-M16×1.5	M16×1.5	4~8	16	7	20	18/18	32
JSM-M16×1.5-D	M16×1.5	5~10	16	7	22	20/20	32
JSM-M18×1.5	M18×1.5	5~10	18	7	22	20/20	32
JSM-M18×1.5-D	M18×1.5	6~12	18	7	23	22/22	32
JSM-M20×1.5	M20×1.5	6~12	20	8	23	22/22	32
JSM-M20×1.5-D	M20×1.5	10~14	22	8	23	24/24	32
JSM-M22×1.5	M22×1.5	6~12	22	8	23	24/22	32
JSM-M22×1.5-D	M22×1.5	10~14	24	8	23	24/24	32
JSM-M24×1.5	M24×1.5	10~14	24	8	23	28/24	32
JSM-M25×1.5-H	M25×1.5	10~14	25	9	23	28/24	18
JSM-M25×1.5	M25×1.5	11~16	25	7	21	28/28	18
JSM-M25×1.5-TD	M25×1.5	11~17	25	9	23	28/28	18
JSM-M25×1.5-D	M25×1.5	13~18	25	9	23	30/30	18
JSM-M27×1.5-H	M27×1.5	11~17	27	9	23	30/28	18
JSM-M27×2.0-H	M27×2.0	11~17	27	9	23	30/28	18
JSM-M27×1.5	M27×1.5	13~18	27	9	23	30/30	18
JSM-M27×2.0	M27×2.0	13~18	27	9	23	30/30	18
JSM-M30×2.0	M30×2.0	13~18	30	11	32	36/30	18
JSM-M30×2.0-TD	M30×2.0	15~21	30	11	32	36/36	18
JSM-M30×2.0-D	M30×2.0	18~25	30	11	32	40/40	18
JSM-M32×1.5-H	M32×1.5	13~18	32	11	32	34/30	8
JSM-M32×1.5	M32×1.5	15~21	32	11	32	36/36	8
JSM-M32×1.5-D	M32×1.5	18~25	32	11	32	40/40	8
JSM-M33×2.0-H	M33×2.0	13~18	33	11	32	34/30	8
JSM-M33×2.0	M33×2.0	18~25	33	11	32	36/36	8
JSM-M33×2.0-D	M33×2.0	15~21	33	11	32	40/40	8
JSM-M36×2.0-H	M36×2.0	18~21	36	11	32	40/40	8
JSM-M36×2.0	M36×2.0	19~28	36	11	32	44/44	8
JSM-M40×1.5-H	M40×1.5	18~25	40	11	32	44/40	4
JSM-M40×1.5	M40×1.5	19~28	40	11	32	44/44	4
JSM-M40×1.5-D	M40×1.5	22~32	40	11	32	50/50	4
JSM-M42×2.0	M42×2.0	22~32	42	11	32	50/50	4
JSM-M48×2.0	M48×2.0	22~32	48	11	32	50/50	2
JSM-M48×2.0-D	M48×2.0	30~38	48	11	38	58/58	2
JSM-M50×1.5-H	M50×1.5	22~32	50	11	38	54/50	2
JSM-M50×1.5	M50×1.5	30~38	50	11	38	58/58	2
JSM-M54×2.0	M54×2.0	30~38	54	11	38	58/58	2
JSM-M56×2.0	M56×2.0	30~38	56	11	38	58/58	2
JSM-M60×2.0	M60×2.0	34~44	60	14	38	64/64	2
JSM-M63×1.5	M63×1.5	34~44	63	14	38	68/64	2
JSM-M64×2.0	M64×2.0	34~44	64	14	45	68/64	2
JSM-M72×2.0	M72×2.0	42~52	72	15	45	81/81	1
JSM-M75×1.5	M75×1.5	42~52	75	15	50	81/81	1
JSM-M80×2.0	M80×2.0	50~60	80	20	50	86/86	1
JSM-M88×2.0	M88×2.0	60~70	88	20	50	96/96	1
JSM-M100×2.0	M100×2.0	70~80	100	20	50	110	1
JSM-M110×2.0	M110×2.0	80~90	110	20	50	125	1
JSM-M125×2.0	M125×2.0	90~100	125	20	50	135	1

JSM-P German PG Thread

Model	Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	H (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM-P07	PG7	3~6.5	12.5	6	19	14/14	75
JSM-P09	PG9	4~8	15.2	7	20	18/18	75
JSM-P09-D	PG9	5~10	15.2	7	22	20/20	75
JSM-P11	PG11	5~10	18.6	7	23	20/20	32
JSM-P11-D	PG11	6~12	18.5	7	23	22/22	32
JSM-P13	PG13.5	6~12	20.4	8	23	22/22	32
JSM-P13-D	PG13.5	10~14	20.4	8	23	24/24	32
JSM-P16	PG16	10~14	22.5	9	23	24/24	32
JSM-P16-D	PG16	11~17	22.5	9	23	28/28	32
JSM-P21	PG21	13~18	28.3	9	23	30/30	18
JSM-P21-D	PG21	15~21	28.3	11	32	36/36	18
JSM-P29	PG29	18~25	37	11	32	40/40	8
JSM-P29-D	PG29	19~28	37	11	32	44/44	8
JSM-P36	PG36	22~32	47	11	32	50/50	4
JSM-P36-D	PG36	30~38	47	11	32	58/58	4
JSM-P42	PG42	30~38	54	11	38	58/58	2
JSM-P48	PG48	34~44	59.3	14	38	64/6	2

JSM-G G Thread

Model	Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	H (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM-G1/4	G1/4	3~6.5	13.157	6	19	14/14	50
JSM-G3/8	G3/8	4~8	16.662	7	20	18/18	50
JSM-G3/8-D	G3/8	5~10	16.662	7	22	18/18	50
JSM-G1/2	G1/2	6~12	20.995	8	23	22/22	32
JSM-G1/2-D	G1/2	10~14	20.995	8	23	24/24	32
JSM-G3/4-TH	G3/4	10~14	26.441	9	23	28/24	18
JSM-G3/4-H	G3/4	11~17	26.441	9	23	30/28	18
JSM-G3/4	G3/4	13~18	26.441	9	23	30/30	18
JSM-G1-TH	G1	13~18	33.249	11	32	36/30	8
JSM-G1-H	G1	15~21	33.249	11	32	36/36	8
JSM-G1	G1	18~25	33.249	11	32	40/40	8
JSM-G1 1/4-TH	G1 1/4	18~25	41.910	11	32	44/40	4
JSM-G1 1/4-H	G1 1/4	19~28	41.910	11	32	44/44	4
JSM-G1 1/4	G1 1/4	22~32	41.910	11	32	50/50	4
JSM-G1 1/2-H	G1 1/2	22~32	47.903	11	32	50/50	2
JSM-G1 1/2	G1 1/2	30~38	47.903	11	32	58/58	2
JSM-G2	G2	34~44	59.614	14	38	64/64	2
JSM-G2 1/2	G2 1/2	42~52	59.614	15	50	81/81	1
JSM-G3	G3	60~70	87.884	20	50	96/96	1
JSM-G3 1/2	G3 1/2	70~80	100.330	20	50	110	1

JSM-N NPT Thread

Model	Thread	Cable rangeΦ(mm)	Thread outer diameter AG (mm)	Thread length GL (mm)	H (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM-N1/4	NPT1/4"	3~6.5	13.616	6	19	14/14	50
JSM-N3/8	NPT3/8"	4~8	17.055	7	20	18/18	50
JSM-N3/8-D	NPT3/8"	5~10	17.055	7	22	20/20	50
JSM-N1/2	NPT1/2"	6~12	21.223	8	23	22/22	32
JSM-N1/2-D	NPT1/2"	10~14	21.223	8	23	24/24	32
JSM-N3/4-TH	NPT3/4"	10~14	26.568	9	23	28/24	18
JSM-N3/4-H	NPT3/4"	11~17	26.568	9	23	30/28	18
JSM-N3/4	NPT3/4"	13~18	26.568	9	23	30/30	18
JSM-N1-TH	NPT1"	13~18	33.227	11	32	36/30	8
JSM-N1-H	NPT1"	15~21	33.227	11	32	36/36	8
JSM-N1	NPT1"	18~25	33.227	11	32	40/40	8
JSM-N1 1/4-TH	NPT1 1/4"	18~25	41.984	11	32	44/40	4
JSM-N1 1/4-H	NPT1 1/4"	19~28	41.984	11	32	44/44	4
JSM-N1 1/4	NPT1 1/4"	22~32	41.984	11	32	50/50	4
JSM-N1 1/2-H	NPT1 1/2"	22~32	48.053	11	32	50/50	2
JSM-N1 1/2	NPT1 1/2"	30~38	48.053	11	32	58/58	2
JSM-N2	NPT2"	34~44	60.091	14	38	64/64	2
JSM-N2 1/2	NPT2 1/2"	42~52	72.699	15	50	81/81	1
JSM-N3-H	NPT3"	60~70	88.608	20	50	96/96	1
JSM-N3	NPT3"	70~80	100.013	20	50	110	1
