OR O-ring

Product Name：O-ring

Product Code：OR

General
Variants

OR O-ring
Performance	Oil resistant, ROHS tested
Temperature	-40℃~120℃
Material	Modified rubber
Application	Waterproof and dustproof

OR-M Metric Standard

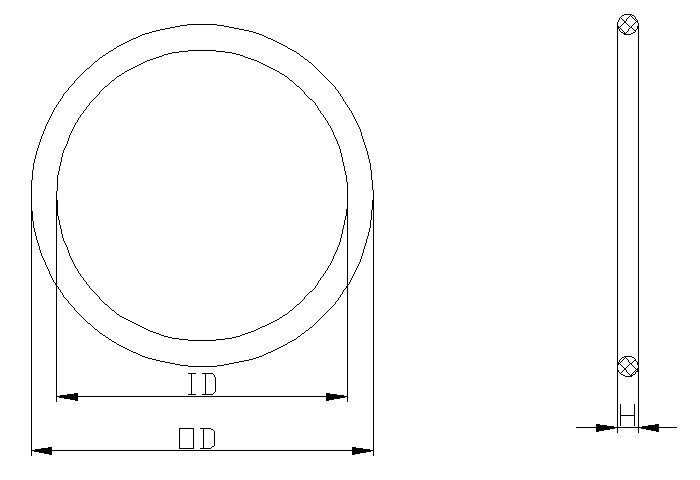

Model	Adapter thread	Inner diameter ID (mm)	Outer diameter OD (mm)	Heightt (mm)
OR-M10×1.0	M10×1.0	8	11	1.5
OR-M12×1.5	M12×1.5	10	13	1.5
OR-M16×1.5	M16×1.5	13	16	1.5
OR-M18×1.5	M18×1.5	15	18	1.5
OR-M20×1.5	M20×1.5	17	20	1.5
OR-M22×1.5	M22×1.5	19	22	2.0
OR-M24×1.5	M24×1.5	21	25	2.0
OR-M25×1.5	M25×1.5	22	26	2.0
OR-M27×2.0	M27×2.0	24	28	2.0
OR-M30×2.0	M30×2.0	27	31	2.0
OR-M32×1.5	M32×1.5	29	33	2.0
OR-M33×2.0	M33×2.0	29	33	2.0
OR-M36×2.0	M36×2.0	33	37	2.0
OR-M40×1.5	M40×1.5	37	41	2.0
OR-M42×1.5	M42×2.0	37	41	2.0
OR-M48×2.0	M48×2.0	44	49	2.5
OR-M50×1.5	M50×1.5	46	51	2.5
OR-M56×2.0	M56×2.0	52	57	2.5
OR-M60×2.0	M60×2.0	55	60	2.5
OR-M63×1.5	M63×1.5	59	64	2.5
OR-M64×2.0	M64×2.0	59	64	2.5

OR-P German PG Standard

Model	Adapter thread	Inner diameter ID (mm)	Outer diameter OD (mm)	Heightt (mm)
OR-P07	PG7	10	13	1.5
OR-P09	PG9	13	16	1.5
OR-P11	PG11	15	18	1.5
OR-P13	PG13.5	17	20	1.5
OR-P16	PG16	19	22	2.0
OR-P21	PG21	25	29	2.0
OR-P29	PG29	33	37	2.0
OR-P36	PG36	43	47	2.0
OR-P42	PG42	50	55	2.5
OR-P48	PG48	55	60	2.5

OR-G G System Standard

Model	Adapter thread	Inner diameter ID (mm)	Outer diameter OD (mm)	Heightt (mm)
OR-G1/4	G1/4″	10	13	1.5
OR-G3/8	G3/8″	13	16	1.5
OR-G1/2	G1/2″	17	21	2
OR-G3/4	G3/4″	23	28	2.5
OR-G1	G1″	29	35	3
OR-G1 1/4	G1 1/4″	37	43	3
OR-G1 1/2	G1 1/2″	44	50	3
OR-G2	G2″	55	61	3
OR-G2 1/2	G2 1/2″	69	75	3
OR-G3	G3″	83	89	3
