Product Name:Snap-In Bushing
Product Code:OSB
Inquiry
General
Variants
OSB Snap-In Bushing
Color
Black (RAL 9005)
Temperature
-40℃~100℃
Material
Nylon 66, UL94-V2
Application
Protect the cables and wires passing through the rough outlet holes. There is no need for tools, and the assembly can be completed only by gently pressing with your hand. It is suitable for 0.8 ~ 3.2mm steel plate, and the open design is suitable for the occasion where the cable has been assembled

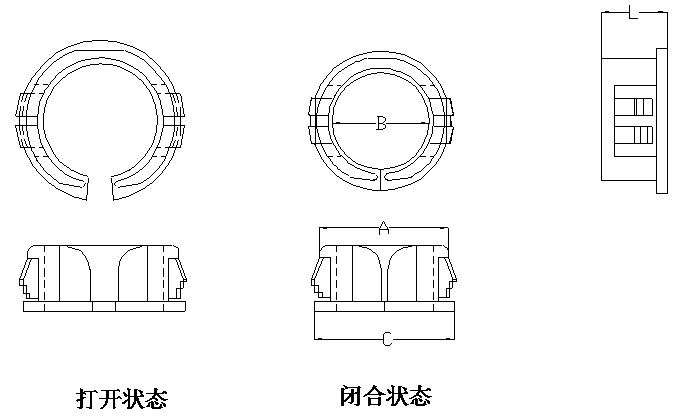

Model
Steel plate aperture
A
(mm)
Threading hole
B (mm)
Cover aperture
C
(mm)
Total height
L(mm)
Package Unit
(pcs/pack)
Greyish white
Black
OSB-10G
OSB-10B
9
6
11.8
9.8
100
OSB-13G
OSB-13B
12.5
7.5
15.1
10.3
100
OSB-16G
OSB-16B
15.5
11.2
18.5
10.3
100
OSB-19G
OSB-19B
18.4
12.5
21
10.3
100
OSB-22G
OSB-22B
22
17
24.6
10.3
100
OSB-26G
OSB-26B
25.5
20
28.4
10.6
100
