PSB Petal Type Snap Bushing

Product Name：Petal Type Snap Bushing

Product Code：PSB

General
Variants

PSB Petal Protector
Color	Black (RAL 9005)
Temperature	-40℃~100℃
Material	Nylon 66, UL94-V2
Application	Petal type outgoing line design can fix wires of all sizes and models without shaking at will. It is suitable for iron plates from 1.4mm to 3.2mm

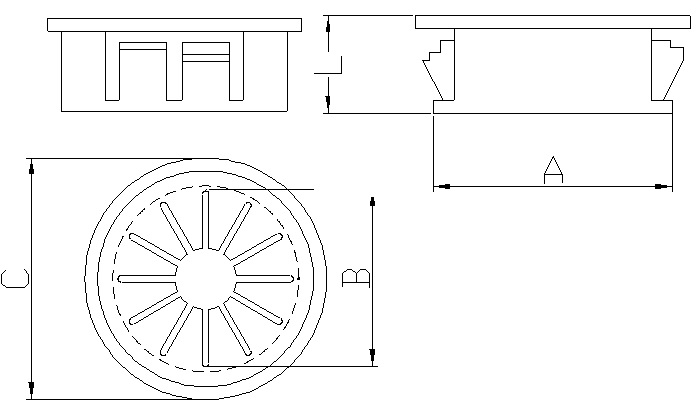

Model		Steel plate aperture A (mm)	Maximum wire hole B (mm)	Cover aperture C (mm)	Height L(mm)	Package Unit (pcs/pack)
Greyish white	Black	Steel plate aperture A (mm)	Maximum wire hole B (mm)	Cover aperture C (mm)	Height L(mm)	Package Unit (pcs/pack)
PSB-16G	PSB-16B	15.9	11.1	18.3	10	100
PSB-19G	PSB-19B	18.8	12.7	21.8	10	100
PSB-22G	PSB-22B	22.2	14.3	23.8	11.5	100
PSB-25G	PSB-25B	25.3	20.4	28.5	11.3	100
PSB-28G	PSB-28B	27.6	22.4	30.8	11.3	100
PSB-30G	PSB-30B	27.6	22.4	30.8	11.3	100
PSB-35G	PSB-35B	34.2	29.3	37.5	11.3	100
PSB-38G	PSB-38B	38	31	31	11.2	100
PSB-45G	PSB-45B	44.5	40	49.7	11.8	100
PSB-50G	PSB-50B	50.1	45	54.6	11.8	100
