RCG Rubber Grommet

Product Name：Rubber Grommet

Product Code：RCG

RCG Rubber Grommet
Color	Black (RAL 9005)
Temperature	-40℃~80℃
Material	Environment friendly aging resistant silicone rubber
Application	It is used to protect the wires and cables passing through the outlet holes in the rough places. It does not need tools, but only needs to be squeezed in by hand

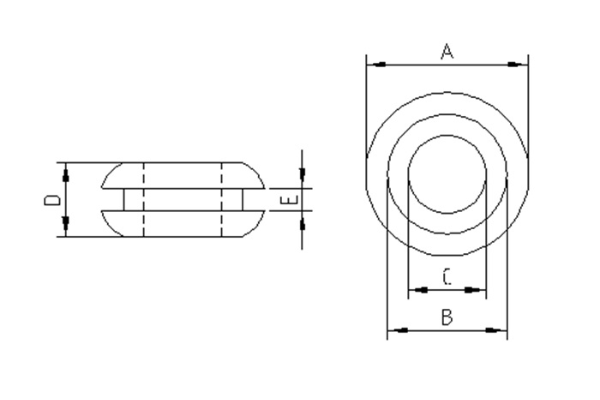

Model	Machine plate hole/outlet hole	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Package Unit (pcs/pack)
RCG-6×3×4.7	06/03	8.5	6	3	4.7	1.7	2000
RCG-7×5×4.4	07/05	10.2	7.2	5	4.4	1.7	2000
RCG-10×6×6.3	10/06	13.3	10	6.4	6.3	1.7	2000
RCG-11×8×9	11/08	15.5	11	8	9	3	2000
RCG-13×8×5.4	08/06	13	8.2	6.2	5.4	2	2000
RCG-15×9×6	09/08	15	9.3	8	6	2	2000
RCG-17×12×7.3	12/10	16.5	12.5	10.3	7.3	2	2000
RCG-21×14×8.2	14/12	20.8	14.2	12.3	8.2	3	2000
RCG-23×16×8.5	16/14	23	16	13.9	8.5	3	2000
RCG-25×12×7	19/12	25	19	12.5	7	2.2	2000
RCG-25×18×8	18/16	25.5	18.5	15.9	8	2.7	2000
RCG-29×15×10	22/15	29	22	15	10	3	2000
RCG-36×25×15	25/23	36	25	23	15	7	2000
