Product Name：Split Variable Diameter Rubber Grommet
Product Code：CM
Inquiry
General
Variants
CM Split Variable Diameter Rubber Collet
Material
Improved EPDM
Color
Grey
Temperature
-40-80℃
Description
CM series sealing module is a brand-new product developed to further improve the flexibility of through wall panel series products. You no longer need to choose collets with different wire diameters. You can thread your cable by simply pulling out several layers of rubber, and it can be used as a plug itself

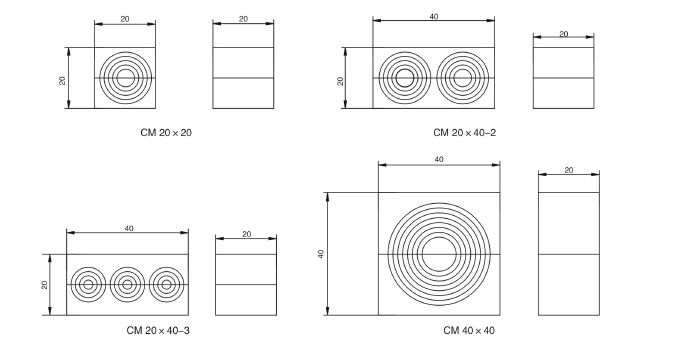

Model
Dimensions
H×W×L(mm×mm×mm)
Color
Clamping range
(mm)
Holes
Packing unit
(pcs/pack)
CM20*20
20×20×20
Grey
1×(5-12.5)
1
216
CM20*40-3
20×40×20
Grey
3×(5-8)
3
108
CM20*40-2
20×40×20
Grey
2×(5-14.5)
2
108
CM40*40
40×40×20
Grey
1×(10-32)
1
54
