KT Split Cable Entry Grommet

Product Name：Split Cable Entry Grommet

Product Code：KT

General
Variants

KT Split Cable Entry Grommet
Material	EPDM
Color	Grey/Black
Temperature	-40-80℃
Product Description	Split design, suitable for pre-terminated cables, up to 120 cables/installation density per panel, various types of clamps can meet various wiring schemes.

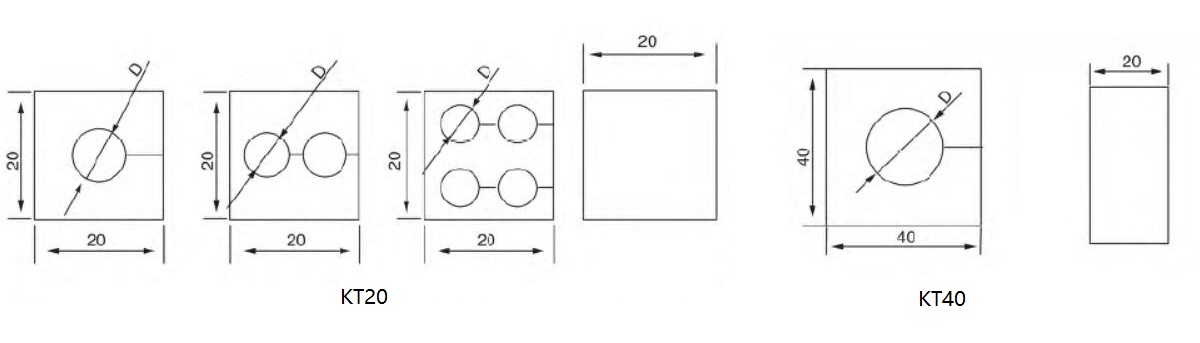

Model		Color	Hole Diameter D(mm)	Clamping range (mm)	Number of holes	Dimensions (mm×mm×mm)	Packing unit (pcs/pack)
KT20 single hole series	KT20 3	Grey/Black	3	1× φ (2.5-3.5)	1	20×20×20	100
	KT20 4	Grey/Black	4	1× φ (3.5-4.5)	1	20×20×20	100
	KT20 5	Grey/Black	5	1× φ (4.5-5.5)	1	20×20×20	100
	KT20 6	Grey/Black	6	1× φ (5.5-6.5)	1	20×20×20	100
	KT20 7	Grey/Black	7	1× φ (6.5-7.5)	1	20×20×20	100
	KT20 8	Grey/Black	8	1× φ (7.5-8.5)	1	20×20×20	100
	KT20 9	Grey/Black	9	1× φ (8.5-9.5)	1	20×20×20	100
	KT20 10	Grey/Black	10	1× φ (9.5-10.5)	1	20×20×20	100
	KT20 11	Grey/Black	11	1× φ (10.5-11.5)	1	20×20×20	100
	KT20 12	Grey/Black	12	1× φ (11.5-12.5)	1	20×20×20	100
	KT20 13	Grey/Black	13	1× φ (12.5-13.5)	1	20×20×20	100
	KT20 14	Grey/Black	14	1× φ (13.5-14.5)	1	20×20×20	100
	KT20 15	Grey/Black	15	1× φ (14.5-15.5)	1	20×20×20	100
	KT20 16	Grey/Black	16	1× φ (15.5-16.5)	1	20×20×20	100
	KT20 17	Grey/Black	17	1× φ (16.5-17.5)	1	20×20×20	100
KT20 2/x double hole series	KT20 2/3	Grey/Black	3	2× φ (2.5-3.5)	2	20×20×20	100
	KT20 2/4	Grey/Black	4	2× φ (3.5-4.5)	2	20×20×20	100
	KT20 2/5	Grey/Black	5	2× φ (4.5-5.5)	2	20×20×20	100
	KT20 2/6	Grey/Black	6	2× φ (5.5-6.5)	2	20×20×20	100
	KT20 2/7	Grey/Black	7	2× φ (6.5-7.5)	2	20×20×20	100
	KT20 2/8	Grey/Black	8	2× φ (7.5-8.5)	2	20×20×20	100
KT20 4/x four hole series	KT20 4/3	Grey/Black	3	4× φ (2.5-3.5)	4	20×20×20	100
	KT20 4/4	Grey/Black	4	4× φ (3.5-4.5)	4	20×20×20	100
	KT20 4/5	Grey/Black	5	4× φ (4.5-5.5)	4	20×20×20	100
	KT20 4/6	Grey/Black	6	4× φ (6.0-7.0)	4	20×20×20	100
KT40 single hole series	KT40 16	Grey/Black	16	1× φ (15.5-16.5)	1	40×40×20	25
	KT40 17	Grey/Black	17	1× φ (16.5-17.5)	1	40×40×20	25
	KT40 18	Grey/Black	18	1× φ (17.5-18.5)	1	40×40×20	25
	KT40 19	Grey/Black	19	1× φ (18.5-19.5)	1	40×40×20	25
	KT40 20	Grey/Black	20	1× φ (19.5-20.5)	1	40×40×20	25
	KT40 21	Grey/Black	21	1× φ (20.5-21.5)	1	40×40×20	25
	KT40 22	Grey/Black	22	1× φ (21.5-22.5)	1	40×40×20	25
	KT40 23	Grey/Black	23	1× φ (22.5-23.5)	1	40×40×20	25
	KT40 24	Grey/Black	24	1× φ (23.5-24.5)	1	40×40×20	25
	KT40 25	Grey/Black	25	1× φ (24.5-25.5)	1	40×40×20	25
	KT40 26	Grey/Black	26	1× φ (25.5-26.5)	1	40×40×20	25
	KT40 27	Grey/Black	27	1× φ (26.5-27.5)	1	40×40×20	25
	KT40 28	Grey/Black	28	1× φ (27.5-28.5)	1	40×40×20	25
	KT40 29	Grey/Black	29	1× φ (28.5-29.5)	1	40×40×20	25
	KT40 30	Grey/Black	30	1× φ (29.5-30.5)	1	40×40×20	25
	KT40 31	Grey/Black	31	1× φ (30.5-31.5)	1	40×40×20	25
	KT40 32	Grey/Black	32	1× φ (31.5-32.5)	1	40×40×20	25
	KT40 33	Grey/Black	33	1× φ (32.5-33.5)	1	40×40×20	25
	KT40 34	Grey/Black	34	1× φ (33.5-34.5)	1	40×40×20	25
