BP Blind Plate

Product Name：Blind Plate

Product Code：BP

BP Blind Plate
Introduction	Replace the threading board, which is used to block the pre opened holes for future replacement
Material	Carbon steel/stainless steel, etc
Color	Specified color or stainless steel natural color
Instructions for use	Add gaskets and fasten the metal blind plate on the cabinet or box with bolts

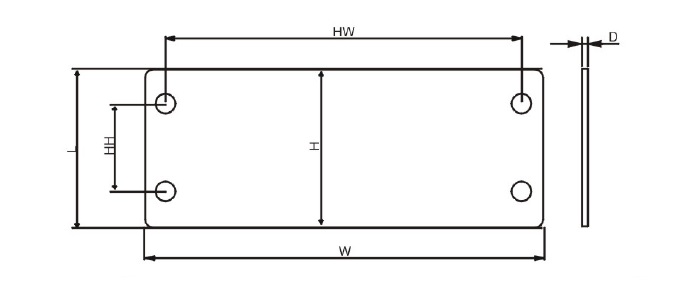

Model	Hole heart distance width HW(mm)	Hole heart distance height HH(mm)	Hole diameter Φ(mm)	Width W(mm)	Height H(mm)	Thickness D(mm)	Matching cable entry system
BP 24	130	32	7	146	58	2	CQB3/CQB5/CEP10
BP 16	103	32	7	116	58	2	CQB4/CEP8
BP 130×64	130	64	7	146	90	2	CQB10
BP 130×95	130	95	7	146	122	2	CQB15
BP 58×32	58	32	7	74	58	2	CEP4
