Product Name：Cable Entry System
Product Code：CF 8
Inquiry
General
Variants
Sets

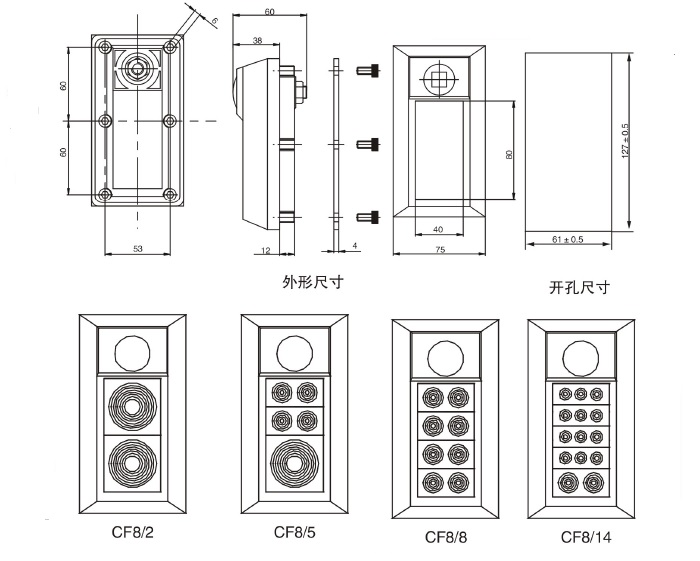

CF 8 Cable Entry System
Temperature
-40-120℃
Protection grade
IP54
Description
CF 8 is suitable for cable/pipe penetration sealing at compact parts in the cabinet. The frame is a cast aluminum frame with an integrated pressing device. CF 8 can seal up to 14 cables
Application
Cabinet, control cabinet, power cabinet, etc
Model
Number of modules
DMK15×40
DMK20×40
DMK40
CF8/2
/
/
2
CF8/5
/
2
1
CF8/8
/
4
/
CF8/14
4
1
/
