Product Name：Cable Entry System
Product Code：CF 16
Inquiry
General
Variants
CF 16 Cable Entry System
Temperature
-40-120℃
Protection grade
IP54
Description
The frame of cf16 is relatively flat, which is suitable for boxes and cabinets that need to penetrate many small cables in a limited space. The frame is a cast aluminum frame with plastic spraying treatment on the surface, which is more environmentally friendly. There is an integrated pressing device in the frame. Cf16 can seal up to 28 cables
Application
Cabinet, control cabinet, power cabinet, etc

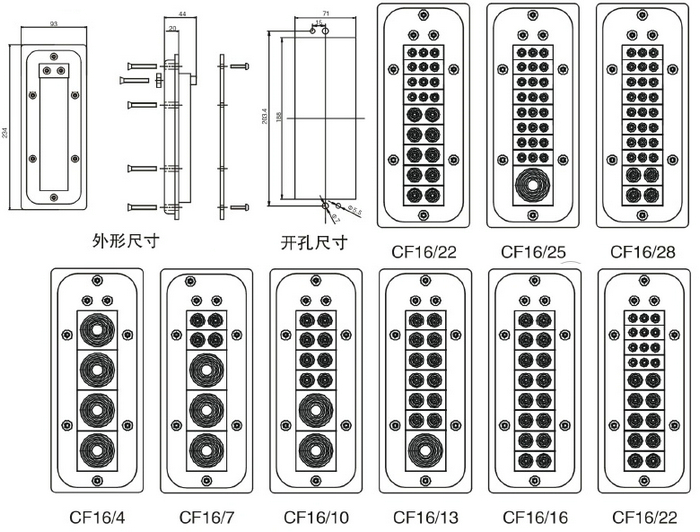

Model
Number of modules
DMK15×40
DMK20×40
DMK40
CF16/4
/
/
4
CF16/7
/
2
3
CF16/10
/
4
2
CF16/13
/
6
1
CF16/16
/
8
/
CF16/22
4
5
/
CF16/25
8
/
1
CF16/28
8
2
/
