Product Name：Cable Marker Plate
Product Code：CM
Inquiry
General
Variants
CM Cable Marker Plate
Material
PP/PE
Color
Transparent white
Usage
Write the marker name on the paper, then put the paper into the nameplate and fix it with the cable tie (within 4.8mm)
Features
Dustproof, easy to identify, and the paper can be changed at any time

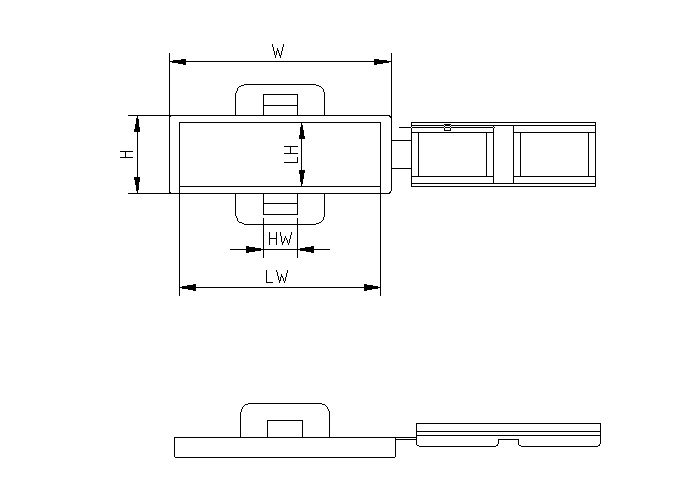

Model
Material
Dimension
W×H(mm×mm)
Label size
LH×LW(mm)
Tie hole width
HW (mm)
Packing unit
(pcs/pack)
CM-1(PP)
PP
32.2×12
9×30
5
100
CM-1(PE)
PE
32.2×12
9×30
5
100
CM-2(PP)
PP
45×20
18×43
8.5
100
CM-2(PE)
PE
45×20
18×43
8.5
100
CM-3(PE)
PE
70×30
26.5×66.5
12.5
100
