Product Name:Cable Holder
Product Code:HC
Inquiry
General
Variants
HC Cable Holder
Material
Nylon 66, fire rating UL-94V2, acid and alkali resistance, strong insulation, durability and not easy to aging
Usage
Fix the fixing base with screws, and then thread the cable tie into the hole to make its wires or cables firm
Features
The saddle design makes the contact between its things and the groove of the fixed seat larger and more firm

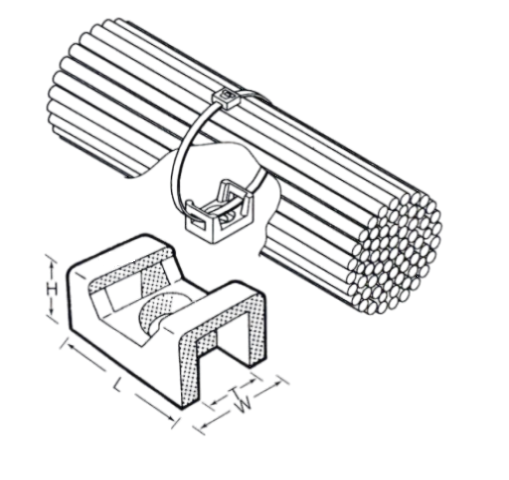

Model
Length L(mm)
Width W(mm)
High H
(mm)
Screw hole (mm)
Tile Hole T(mm)
Packing unit
(pcs/pack)
HC-0
19
9.5
5
3
5
100pc/package
HC-0L
19
9.5
5
5.2
5
HC-0R
19.1
10
6.2
4.2
5.4
HC-1
16
10
7
4
5
HC-2
23
16
9.5
6
9
HC-5
21.4
15.7
10
6x9. 8
7.8
HC-6
30
16
14
4.7
9.7
HC-7
40
18
16
4.7
12.8
HC-8
27.5
12.8
16.5
6.4
8.5
HC-9
11.1
11.1
4.8
4
5
