Product Name:Solid Module
Product Code:BCM
Inquiry
General
Variants
BCM Solid Module
Material
Improved EPDM
Color
Blue
Temperature
-40-80℃
Product Description
BCM solid solid module is used to fill excess space or expand space. BCM R20 and BCM R40 solid solid modules are used to fill the fillet in the rrcf fillet frame

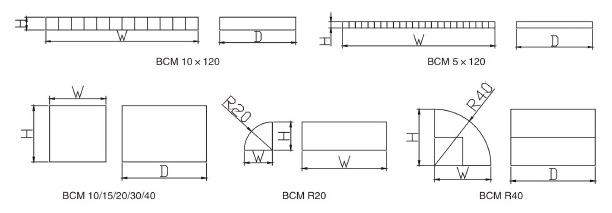

Model
Dimensions
H×W×D(mm×mm×mm)
Weight
(kg)
BCM 10
10×10×60
0.01
BCM 15
15×15×60
0.02
BCM 20
20×20×60
0.04
BCM 30
30×30×60
0.09
BCM 40
40×40×60
0.16
BCM 5×120
5×120×60
0.06
BCM 10×120
10×120×60
0.12
BCM R20
20×20×60
0.03
BCM R40
40×40×60
0.12
