RCFG Light And Thin Flange Rectangular Modular Frame

Product Name：Light And Thin Flange Rectangular Modular Frame

Product Code：RCFG

General
Variants

RCFG Light And Thin Flange Rectangular Modular Frame
Material	Carbon steel, stainless steel, etc
Supporting products	Compression block, sealing module, spacer plate and grease
Use occasion	In the case of irregular wall holes, if welding is adopted, the flange edge can reduce the difficulty of welding; If bolting is adopted, holes can be made on the wall and on the flange edge, which is easy to bolt
Introduction	RCFG is a light and thin version of rcff. The thickness of the main frame and flange edge is 6mm, including tightening the bolts on the compression block, and the compression block will squeeze the sealing module in the vertical direction, so as to achieve the purpose of compression and sealing. The RCFG framework can be extended in both horizontal and vertical directions

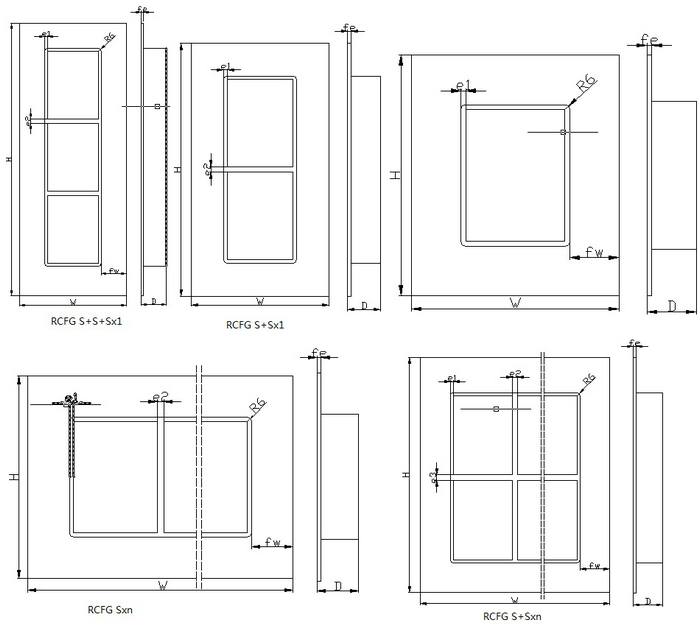

note:s - frame size n - number of openings in horizontal direction e1—6mm e2—10mm e3—12mm

Model		Steel plate thickness e1(mm)	Flange thickness fe(mm)	Flange width fw(mm)	Number of holes			Single hole sealing space (mm×mm)	Dimensions H×W×D(mm)	Weight (kg)
Carbon steel	316 stainless steel	Steel plate thickness e1(mm)	Flange thickness fe(mm)	Flange width fw(mm)	Horizital(n)	Vertical(m)	Total(m×n)	Single hole sealing space (mm×mm)	Dimensions H×W×D(mm)	Weight (kg)
RCFG 2×1	RCFG 2×1 S316	6	6	60	1	1	1	60×120	233×253×60	3.4
RCFG 2×2	RCFG 2×2 S316	6	6	60	2	1	2	60×120	233×383×60	5.4
RCFG 2×3	RCFG 2×3 S316	6	6	60	3	1	3	60×120	233×514×60	7.4
RCFG 2×4	RCFG 2×4 S316	6	6	60	4	1	4	60×120	233×644×60	9.3
RCFG 2×5	RCFG 2×5 S316	6	6	60	5	1	5	60×120	233×775×60	11.3
RCFG 4×1	RCFG 4×1 S316	6	6	60	1	1	1	120×120	292×253×60	4.1
RCFG 4×2	RCFG 4×2 S316	6	6	60	2	1	2	120×120	292×383×60	6.3
RCFG 4×3	RCFG 4×3 S316	6	6	60	3	1	3	120×120	292×514×60	8.6
RCFG 4×4	RCFG 4×4 S316	6	6	60	4	1	4	120×120	292×644×60	10.8
RCFG 4×5	RCFG 4×5 S316	6	6	60	5	1	5	120×120	292×775×60	13.1
RCFG 4×6	RCFG 4×6 S316	6	6	60	6	1	6	120×120	292×905×60	15.3
RCFG 4+4×1	RCFG 4+4×1 S316	6	6	60	1	2	2	120×120	461×253×60	6.6
RCFG 4+4×2	RCFG 4+4×2 S316	6	6	60	2	2	4	120×120	463×383×60	10.5
RCFG 4+4×3	RCFG 4+4×3 S316	6	6	60	3	2	6	120×120	463×514×60	14.2
RCFG 4+4×4	RCFG 4+4×4 S316	6	6	60	4	2	8	120×120	463×644×60	17.9
RCFG 4+4×5	RCFG 4+4×5 S316	6	6	60	5	2	10	120×120	463×775×60	21.7
RCFG 4+4×6	RCFG 4+4×6 S316	6	6	60	6	2	12	120×120	463×905×60	25.4
RCFG 4+4×7	RCFG 4+4×7 S316	6	6	60	7	2	14	120×120	463×1036×60	29.2
RCFG 4+4×8	RCFG 4+4×8 S316	6	6	60	8	2	16	120×120	463×1166×60	32.9
RCFG 4+4×9	RCFG 4+4×9 S316	6	6	60	9	2	18	120×120	463×1297×60	36.6
RCFG 4+4×10	RCFG 4+4×10 S316	6	6	60	10	2	20	120×120	463×1427×60	40.4
RCFG 4+4+4×1	RCFG 4+4+4×1 S316	6	6	60	1	3	3	120×120	631×253×60	9.1
RCFG 6×1	RCFG 6×1 S316	6	6	60	1	1	1	180×120	350×253×60	4.8
RCFG 6×2	RCFG 6×2 S316	6	6	60	2	1	2	180×120	350×383×60	7.3
RCFG 6×3	RCFG 6×3 S316	6	6	60	3	1	3	180×120	350×514×60	9.8
RCFG 6×4	RCFG 6×4 S316	6	6	60	4	1	4	180×120	350×644×60	12.3
RCFG 6×5	RCFG 6×5 S316	6	6	60	5	1	5	180×120	350×775×60	14.9
RCFG 6×6	RCFG 6×6 S316	6	6	60	6	1	6	180×120	350×905×60	17.4
RCFG 6+6×1	RCFG 6+6×1 S316	6	6	60	1	2	2	180×120	578×253×60	8.0
RCFG 6+6×2	RCFG 6+6×2 S316	6	6	60	2	2	4	180×120	580×383×60	12.4
RCFG 6+6×3	RCFG 6+6×3 S316	6	6	60	3	2	6	180×120	580×514×60	16.6
RCFG 6+6×4	RCFG 6+6×4 S316	6	6	60	4	2	8	180×120	580×644×60	20.9
RCFG 6+6×5	RCFG 6+6×5 S316	6	6	60	5	2	10	180×120	580×775×60	25.2
RCFG 6+6×6	RCFG 6+6×6 S316	6	6	60	6	2	12	180×120	580×905×60	29.5
RCFG 6+6×7	RCFG 6+6×7 S316	6	6	60	7	2	14	180×120	580×1036×60	33.8
RCFG 6+6+6×1	RCFG 6+6+6×1 S316	6	6	60	1	3	3	180×120	806×253×60	11.1
RCFG 8×1	RCFG 8×1 S316	6	6	60	1	1	1	240×120	410×253×60	29.5
RCFG 8×2	RCFG 8×2 S316	6	6	60	2	1	2	240×120	410×383×60	33.8
RCFG 8×3	RCFG 8×3 S316	6	6	60	3	1	3	240×120	410×514×60	38.1
RCFG 8×4	RCFG 8×4 S316	6	6	60	4	1	4	240×120	410×644×60	42.4
RCFG 8×5	RCFG 8×5 S316	6	6	60	5	1	5	240×120	410×775×60	46.7
RCFG 8×6	RCFG 8×6 S316	6	6	60	6	1	6	240×120	410×905×60	51.0
