RSL Round Sleeve

Product Name：Round Sleeve

Product Code：RSL

General
Variants

RSL Round Sleeve
Material	Low carbon steel, stainless steel, etc
Applicable occasions	If the wall cannot be drilled or has not been drilled in advance, it can be welded to the wall through RSL to provide a regular round hole
Structure	Cylindrical metal sleeve
Product Description	RSL round sleeve can be used with RMF or RSF, which is used when the wall cannot be drilled or there is no pre drilling

RSL/RMF Series

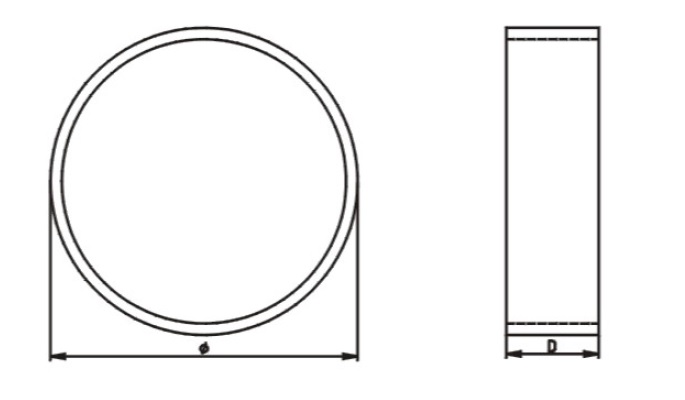

Model		Matching RMF frame model	Outer diameter Φ(mm)	Thickness D(mm)	Weight (kg)
Carbon steel	316 stainless steel	Matching RMF frame model	Outer diameter Φ(mm)	Thickness D(mm)	Weight (kg)
RSL/RMF50	RSL/RMF50 S316	RMF 50	63.5	74	0.6
RSL/RMF75	RSL/RMF75 S316	RMF 75	89	74	0.9
RSL/RMF100	RSL/RMF100 S316	RMF 100	114	74	1.2
RSL/RMF125	RSL/RMF125 S316	RMF 125	140	74	2.3
RSL/RMF150	RSL/RMF150 S316	RMF 150	174	74	2.3
RSL/RMF200	RSL/RMF200 S316	RMF 200	228	84	3.9
RSL/RMF300	RSL/RMF300 S316	RMF 300	327	94	5.7

RSF Series

Model		Matching RSF frame model	Outer diameter Φ(mm)	Thickness D(mm)	Weight (kg)
Carbon steel	316 stainless steel	Matching RSF frame model	Outer diameter Φ(mm)	Thickness D(mm)	Weight (kg)
RSL/RSF23	RSL/RSF23 S316	RSF23	32	35	0.1
RSL/RSF25	RSL/RSF25 S316	RSF25	34	35	0.11
RSL/RSF31	RSL/RSF31 S316	RSF31	40	35	0.14
RSL/RSF43	RSL/RSF43 S316	RSF43	52	65	0.31
RSL/RSF50	RSL/RSF50 S316	RSF50	63	65	0.54
RSL/RSF68	RSL/RSF68 S316	RSF68	83	65	0.81
RSL/RSF75	RSL/RSF75 S316	RSF75	89	65	0.83
RSL/RSF100	RSL/RSF100 S316	RSF100	114	65	1.1
RSL/RSF125	RSL/RSF125 S316	RSF125	140	65	1.5
RSL/RSF150	RSL/RSF150 S316	RSF150	164	65	1.63
RSL/RSF175	RSL/RSF175 S316	RSF175	189	55	1.6
RSL/RSF 200	RSL/RSF 200 S316	RSF200	214	55	1.8
RSL/RSF 225	RSL/RSF 225 S316	RSF225	239	55	1.9
RSL/RSF 250	RSL/RSF 250 S316	RSF250	264	55	2.1
RSL/RSF 300	RSL/RSF 300 S316	RSF300	314	55	2.5
RSL/RSF 350	RSL/RSF 350 S316	RSF350	364	55	2.9
RSL/RSF 400	RSL/RSF 400 S316	RSF400	414	55	3.3
RSL/RSF 450	RSL/RSF 450 S316	RSF450	464	55	3.7
RSL/RSF 500	RSL/RSF 500 S316	RSF500	514	55	4.1
RSL/RSF 550	RSL/RSF 550 S316	RSF550	564	55	4.5
RSL/RSF 600	RSL/RSF 600 S316	RSF600	614	55	4.9
RSL/RSF 650	RSL/RSF 650 S316	RSF650	664	55	5.3
