FSL Flange Type Round Sleeve

Product Name：Flange Type Round Sleeve

Product Code：FSL

General
Variants

FSL Flanged Round Sleeve
Material	Carbon steel, stainless steel, etc
Structure	Cylindrical metal sleeve with flange edge
Application	Where bolts are bolted
Product Description	FSL is a round metal sleeve with flange edge, which is used in combination with RMF or RSF. It is suitable for the occasion where the wall adopts flange bolting or welding

FSL/RMF Series

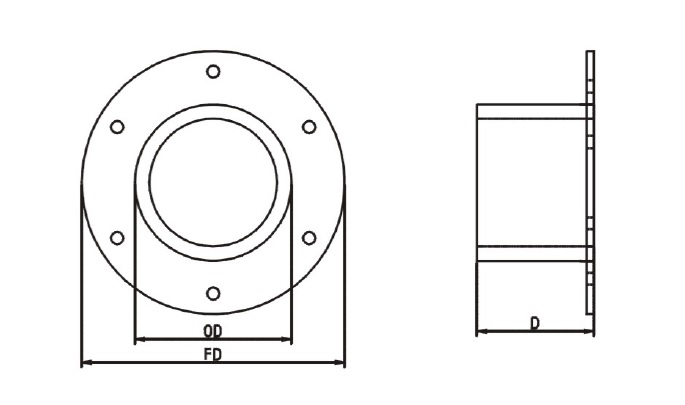

Model		Match RMF frame model	Dimensions
Carbon steel	316 stainless steel	Match RMF frame model	Outer diameter OD(mm)	Flange diameter FD(mm)	Thickness D(mm)
FSL/RMF50	FSL/RMF50 S316	RMF 50	63.5	110	74
FSL/RMF75	FSL/RMF75 S316	RMF 75	89	149	74
FSL/RMF100	FSL/RMF100 S316	RMF 100	114	174	74
FSL/RMF125	FSL/RMF125 S316	RMF 125	140	200	74
FSL/RMF150	FSL/RMF150 S316	RMF 150	174	213	84
FSL/RMF200	FSL/RMF200 S316	RMF 200	228	288	84

FSL/RSF Series

Model		Match RSF frame model	Dimensions
Carbon steel	316 stainless steel	Match RSF frame model	Outer diameter OD(mm)	Flange diameter FD(mm)
FSL/RSF23	FSL/RSF23 S316	RSF23	32	92
FSL/RSF25	FSL/RSF25 S316	RSF25	34	94
FSL/RSF31	FSL/RSF31 S316	RSF31	40	100
FSL/RSF43	FSL/RSF43 S316	RSF43	52	112
FSL/RSF50	FSL/RSF50 S316	RSF50	63	123
FSL/RSF68	FSL/RSF68 S316	RSF68	83	143
FSL/RSF75	FSL/RSF75 S316	RSF75	89	149
FSL/RSF100	FSL/RSF100 S316	RSF100	114	174
FSL/RSF125	FSL/RSF125 S316	RSF125	140	200
FSL/RSF150	FSL/RSF150 S316	RSF150	164	224
FSL/RSF175	FSL/RSF175 S316	RSF175	189	249
FSL/RSF 200	FSL/RSF 200 S316	RSF200	214	274
FSL/RSF 225	FSL/RSF 225 S316	RSF225	239	299
FSL/RSF 250	FSL/RSF 250 S316	RSF250	264	324
FSL/RSF 300	FSL/RSF 300 S316	RSF300	314	374
FSL/RSF 350	FSL/RSF 350 S316	RSF350	364	424
FSL/RSF 400	FSL/RSF 400 S316	RSF400	414	474
FSL/RSF 450	FSL/RSF 450 S316	RSF450	464	524
FSL/RSF 500	FSL/RSF 500 S316	RSF500	514	574
FSL/RSF 550	FSL/RSF 550 S316	RSF550	564	624
FSL/RSF 600	FSL/RSF 600 S316	RSF600	614	674
FSL/RSF 650	FSL/RSF 650 S316	RSF650	664	724
