Product Name:Wedge Pressing Block
Product Code:WCT
Inquiry
General
Variants
WCT Wedge Compression Block
Material
Rubber part: improved EPDM bolt: carbon steel or stainless steel
Color
Blue
Applicable occasions
Compression of rectangular frame
Product Description
By tightening the bolts, the wedge-shaped block is transformed into vertical extrusion up and down, so as to achieve the effect of extruding the sealing module

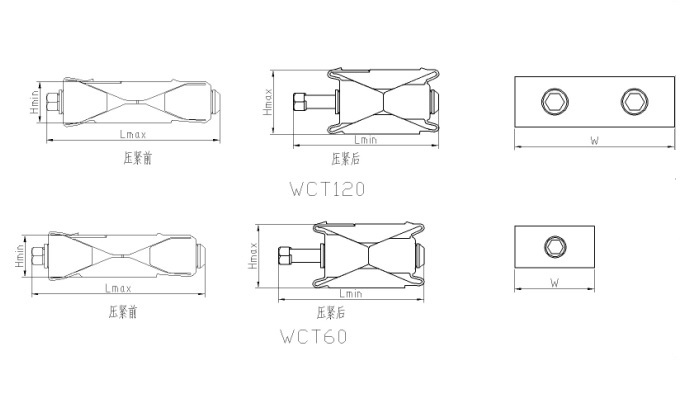

Model
Color
Width
Compression range
Length of pressing block
Bolt
Suitable for module
Carbon steel
304 stainless steel
(mm)
Hmin
Hmax
Lmin
Lmax
M8
WCT120
WCT120 S304
Blue
120
32
55
87
130
M8
DCM
WCT60
WCT60 S304
Blue
60
36
47
115
130
M8
DCM
